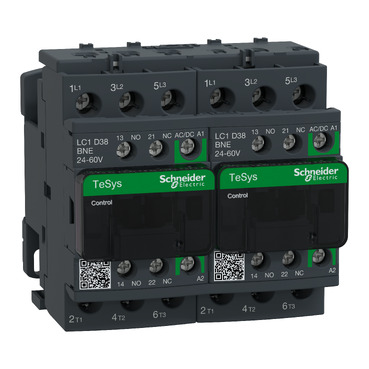

TeSys D Reversing Contactor TeSys Deca, 3P(3 NO), AC-3, 0 to 440V, 38A, 24 to 60VAC/DC coil
Item Number: LC2D38BNE
Specifications
Design
Range of product
Range
Product or component type
Warranty
Physical
Device presentation
[ue] rated operational voltage
[ie] rated operational current
- 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
- 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
- 38 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Electrical durability
- 1.8 Mcycles 35 A AC-3 at Ue <= 440 V
- 0.9 Mcycles 50 A AC-1 at Ue <= 440 V
Mounting support
- rail
- plate
Standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC 60335-1
Product certifications
- CCC
- CSA
- EAC
- UL
- KC
- DNV-GL
- LROS (Lloyds register of shipping)
Connections - terminals
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end
- control circuit: screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end
- control circuit: screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end
- control circuit: screw clamp terminals 1 cable(s) 1-4 mm²solid
- control circuit: screw clamp terminals 2 cable(s) 1-4 mm²solid
- power circuit: screw clamp terminals 1 cable(s) 2.5-10 mm²flexible without cable end
- power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²flexible without cable end
- power circuit: screw clamp terminals 1 cable(s) 1-10 mm²flexible with cable end
- power circuit: screw clamp terminals 2 cable(s) 1.5-6 mm²flexible with cable end
- power circuit: screw clamp terminals 1 cable(s) 1.5-10 mm²solid
- power circuit: screw clamp terminals 2 cable(s) 2.5-10 mm²solid
Mechanical durability
Insulation resistance
Ip degree of protection
Climatic withstand
- conforming to IACS E10
- conforming to IEC 60947-1 Annex Q category D
Ambient air temperature for operation
- -40...60 °C
- 60...70 °C with derating
Ambient air temperature for storage
Height
Width
Depth
Net weight
Eu rohs directive
Mercury free
China rohs regulation
Rohs exemption information
Environmental disclosure
Circularity profile
Others
Commercial status history
- SESA65410
- Wed Oct 11 21:31:00 EDT 2023
- From Import Local
- From 18 to 18
Package 1 bare product quantity
Product name
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-1
- AC-3
Poles description
Pole contact composition
Motor power kw
- 9 kW at 220...230 V AC 50 Hz
- 18.5 kW at 380...400 V AC 50 Hz
- 18.5 kW at 415 V AC 50 Hz
- 18.5 kW at 440 V AC 50 Hz
- 18.5 kW at 500 V AC 50 Hz
- 18.5 kW at 660...690 V AC 50 Hz
Motor power hp
- 2 hp at 115 V AC 60 Hz for 1 phase motors
- 5 hp at 230/240 V AC 60 Hz for 1 phase motors
- 10 hp at 200/208 V AC 60 Hz for 3 phases motors
- 10 hp at 230/240 V AC 60 Hz for 3 phases motors
- 20 hp at 460/480 V AC 60 Hz for 3 phases motors
- 25 hp at 575/600 V AC 60 Hz for 3 phases motors
Control circuit type
- AC at 50/60 Hz AC/DC electronic
- DC AC/DC electronic
[uc] control circuit voltage
- 24...60 V AC 50/60 Hz
- 24...60 V DC
Auxiliary contact composition
[uimp] rated impulse withstand voltage
Overvoltage category
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 50 A (at 60 °C) for power circuit
Irms rated making capacity
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
- 550 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity
[icw] rated short-time withstand current
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
- 430 A 40 °C - 1 s for power circuit
- 60 A 40 °C - 10 min for power circuit
- 150 A 40 °C - 1 min for power circuit
- 310 A 40 °C - 10 s for power circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 63 A gG at <= 690 V coordination type 1 for power circuit
- 63 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Power dissipation per pole
- 5 W AC-1
- 3 W AC-3
Protective cover
Interlocking type
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
- power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Operating time
- 45...55 ms closing
- 20...90 ms opening
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Maximum operating rate
Coil technology
Control circuit voltage limits
- <= 0.1 Uc (-40-70 °C):drop-out AC/DC
- 0.85...1.1 Uc (-40-60 °C):operational AC
- 0.8...1.1 Uc (-40-60 °C):operational DC
- 1...1.1 Uc (60-70 °C):operational AC/DC
Inrush power in va
Inrush power in w
Hold-in power consumption in va
Hold-in power consumption in w
Heat dissipation
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching current
Minimum switching voltage
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Compatibility code
Protective treatment
Pollution degree
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open: 2 Gn, 5...300 Hz
- vibrations contactor closed: 4 Gn, 5...300 Hz
- shocks contactor closed: 15 Gn for 11 ms
- shocks contactor open: 8 Gn for 11 ms
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Weee
Halogen content performance
Halogen content performance
