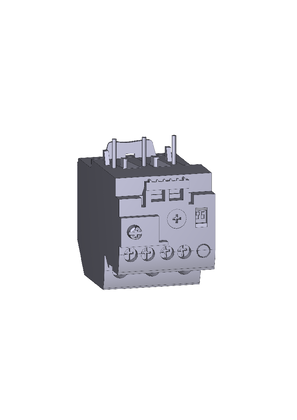

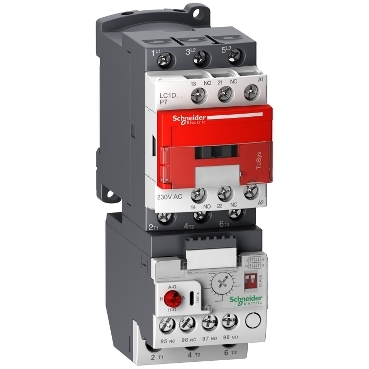

TeSys LR9 Overload relay TeSys LRD, motor protection, withstand 6kV impulse and 2kV surge, 6.4A to 32A, electronic, thermal

Item Number: LR9D32

1 PCE 0

Where To Buy

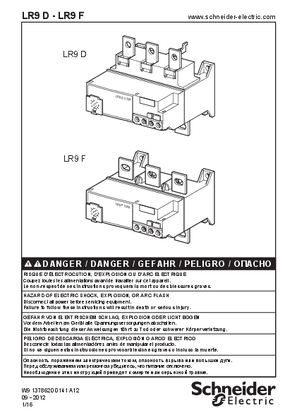

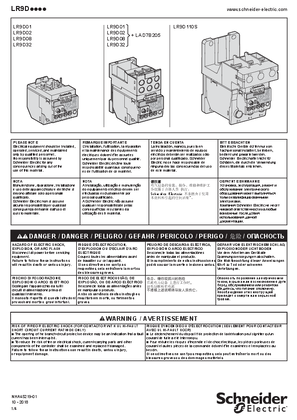

Datasheet

Download

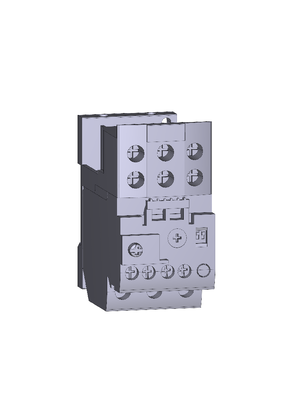

Product Dimensions

Width45 mm

Height72.5 mm

Depth79.9 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606485420950	-

Specifications

Design

Range	TeSys
Product or component type	electronic thermal overload relay

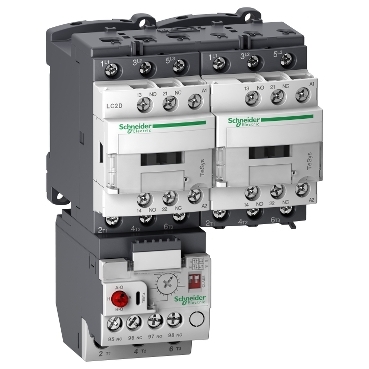

Product compatibility	LC1D09 LC1D25 LC1D32 LC1D38 LC1D12 LC1D18

Physical

Power consumption in w	300 mW
Mounting support	under contactor plate, with specific accessories rail, with specific accessories
[ue] rated operational voltage	690 V for power circuit 660 V for signalling circuit
Control type	red push-button: stop and manual reset white 2 microswitches: adjustable trip class red knob: automatic reset grey dial: full-load current adjustment
Connections - terminals	control circuit: screw clamp terminals 1 cable 2.5-2.5 mm² - cable stiffness: solid or flexible - without cable end power circuit: screw clamp terminals 1 cable 16-16 mm² - cable stiffness: solid or flexible - without cable end
Height	72.5 mm
Width	45 mm
Depth	79.9 mm
Net weight	0.18 kg
Standards	EN/IEC 60947-4-1 EN/IEC 60947-5-1 UL 60947-4-1 UL 60947-5-1 CSA C22.2 No 60947-4-1 CSA C22.2 No 60947-5-1 GB/T 14048.4 GB/T 14048.5

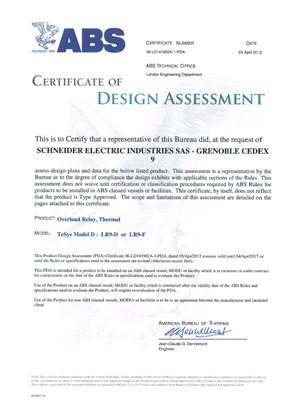

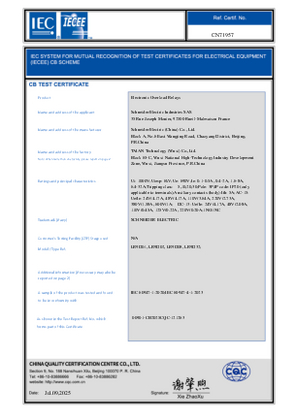

Product certifications	IECEE CB Scheme UL CSA CCC
Ip degree of protection	IP20 front face conforming to IEC 60529
Ambient air temperature for operation	-25...70 °C conforming to IEC 60255...8
Ambient air temperature for storage	-55...80 °C
Mercury free	Yes
Rohs exemption information	Yes
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Brand Label
Substance regulation data deliverable	Yes
Legacy weee scope	In
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	30
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys LRD
Device short name	LR9D
Relay application	motor protection
Thermal overload class	class 5…30
Thermal protection adjustment range	6.4...32 A
[ui] rated insulation voltage	power circuit: 1000 V signalling circuit: 690 V
Tripping threshold	1.25 In conforming to IEC 60947-4-1
Time range	1.5...4 min - automatic reset time
[ith] conventional free air thermal current	5 A for signalling circuit
Associated fuse rating	5 A gG for signalling circuit 5 A BS for signalling circuit
[uimp] rated impulse withstand voltage	6 kV
Phase failure sensitivity	phase difference > 40% 3-3 s conforming to IEC 60947-4-1
Electromagnetic compatibility	surge withstand: 2 kV common mode conforming to IEC 61000-4-5 resistance to electrostatic discharge: 8 kV conforming to IEC 61000-4-2 immunity to radiated radio-electrical interference: 10 V/m conforming to IEC 61000-4-3 immunity to fast transients: 2 kV conforming to IEC 61000-4-4
Tightening torque	control circuit: 0.8 N.m on screw clamp terminals power circuit: 3.1 N.m on screw clamp terminals
Operating altitude	2000 m without derating
Mechanical robustness	vibrations 10...150 Hz: 6 Gn conforming to IEC 60068-2-6 shocks 11 ms: 15 gn conforming to IEC 60068-2-7
Dielectric strength	6 kV 50 Hz conforming to IEC 60255-5
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	7.000 cm
Package 1 length	9.000 cm
Package 1 weight	220.000 g
Unit type of package 2	S02
Number of units in package 2	30
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	6.629 kg
Sustainable packaging	No
Pvc free	N/A
Halogen-free status	N/A
Silicone-free	N/A
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	7
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
