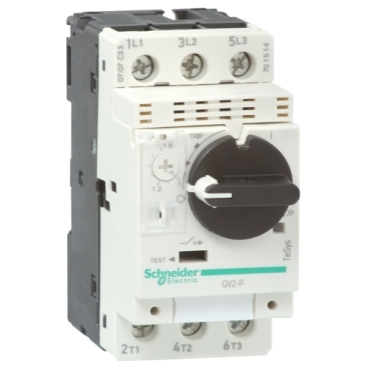

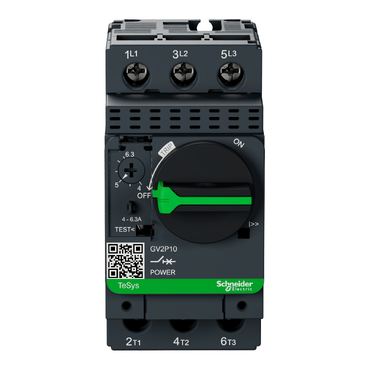

TeSys GV2 Motor circuit breaker TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals, rotary handle
Item Number: GV2P10
TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX),
Specifications
Design
Range
Range of product
- TeSys GV2
- TeSys Deca
Product or component type
Device application
Warranty
Physical
Control type
[in] rated current
[ue] rated operational voltage
Mechanical durability
Electrical durability
- 100000 cycles for AC-3 at 415 V In
- 100000 cycles for AC-3e at 415 V In
Fixing mode
- 35 mm symmetrical DIN rail: clipped
- panel: screwed (with 2 x M4 screws)
Mounting position
- horizontal
- vertical
Width
Height
Depth
Standards
- EN/IEC 60947-2
- EN/IEC 60947-4-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC/EN 60335-2-40:Annex JJ
- IEC/EN 60335-1:Clause 30.2
Product certifications
- CCC
- UL
- CSA
- EAC
- ATEX
- LROS (Lloyds register of shipping)
- BV
- RINA
- DNV-GL
- UKCA
Ik degree of protection
Ip degree of protection
Climatic withstand
Ambient air temperature for storage
Ambient air temperature for operation
Reach regulation
Reach free of svhc
Eu rohs directive
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 3 bare product quantity
Package 2 bare product quantity
Package 1 bare product quantity
Product name
Device short name
Trip unit technology
Poles description
Network type
Utilisation category
- category A conforming to IEC 60947-2
- AC-3 conforming to IEC 60947-4-1
- AC-3e conforming to IEC 60947-4-1
Network frequency
Motor power kw
- 2.2.2 kW at 400/415 V AC 50/60 Hz
- 3 kW at 500 V AC 50/60 Hz
- 4 kW at 690 V AC 50/60 Hz
Breaking capacity
- 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
- 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
- 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
- 6 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
[ics] rated service short-circuit breaking capacity
- 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
- 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
- 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
- 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
- 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
Thermal protection adjustment range
Magnetic tripping current
[ith] conventional free air thermal current
[ui] rated insulation voltage
[uimp] rated impulse withstand voltage
Phase failure sensitivity
Suitability for isolation
Power dissipation per pole
Maximum operating rate
Rated duty
Tightening torque
Compatibility code
Fire resistance
Mechanical robustness
- shocks: 30 Gn for 11 ms
- vibrations: 5 Gn, 5...150 Hz
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Scip number
Weee
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Data Bulletin
-
Installation Instruction
-
Environmental Disclosure
-
End of Life Manual
-
Operating Manuals
-
Technical illustration
-
Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
VERSION
16.0
DATE
18 Apr 2025
REVISION
16.0
TeSys Contactors for Railway Applications- Catalog 2025
VERSION
4.1
DATE
22 Mar 2025
REVISION
4.1
Discover the catalog for Altivar Machine ATV320 variable speed drive
VERSION
10.0
DATE
04 Feb 2025
REVISION
10.0
Discover the catalog for Altivar Solar Variable Speed Drives
VERSION
2.0
DATE
19 Jun 2024
REVISION
2.0
GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
VERSION
3.0
DATE
19 Dec 2024
REVISION
3.0
GV2 P/L Motor circuit-breakers - Instruction Sheet
VERSION
1.0
DATE
19 Dec 2024
REVISION
1.0
GV2AP.. Fixing kit for door interlock mechanism for GV2 P/L
VERSION
2.1
DATE
29 Sep 2023
REVISION
2.1
UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
VERSION
1.0
DATE
21 Apr 2025
REVISION
1.0
CB_Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
31 Mar 2025
REVISION
1.0
CCC Certificate_TeSys GV_GV2ME&GV2RT&GV2P&GV2L&GV2LE_France
VERSION
1.0
DATE
31 Mar 2025
REVISION
1.0
CCC_TeSys GV_GV2ME&GV2P&GV2L_Thailand
VERSION
1.0
DATE
02 Dec 2024
REVISION
1.0
Marine Type Approval Certificate_TeSys GV_GV2L&GV2ME&GV2P&GV2RT
VERSION
1.0
DATE
12 Nov 2024
REVISION
1.0
BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
15 Sep 2024
REVISION
1.0
UL_Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
14 Sep 2024
REVISION
1.0
ATEX Certificate TeSys GV2ME&GV2P
VERSION
1.0
DATE
16 Aug 2024
REVISION
1.0
CSA Certificate_TeSys GV2ME&GV2RT&GV2P&GV2MC&GV2MP and GV2P Type E & GV2P combined with LC1D09-38 type F
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
DNV-GL Type Approval Certificate TeSys GV2ME&GV2P&GV2L
VERSION
1.0
DATE
04 Oct 2023
REVISION
1.0
RINA Type Approval Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
22 Dec 2022
REVISION
1.0
UL_Certificate_TeSys GV2P Type E & GV2P combined with LC1D09-38 type F
VERSION
1.0
DATE
22 Dec 2022
REVISION
1.0
UKCA Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
VERSION
2.0
DATE
16 Apr 2025
REVISION
2.0
EU Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
VERSION
2.0
DATE
16 Apr 2025
REVISION
2.0
UKCA Declaration TeSys GV_GV2ME_GV2P with ATEX
VERSION
1.0
DATE
10 Apr 2025
REVISION
1.0
EU Declaration TeSys GV2ME & GV2P with ATEX
VERSION
1.0
DATE
10 Apr 2025
REVISION
1.0
Frequently Asked Questions
What is the part number for the spacer used with the LC*D09 through LC*D32 Contactor and the GV2AF3 combination block when the GV2 Motor Circuit Protector is mounted on din rail and the contactor hangs below it?
Hide ShowIdentifying the spacer part number for use with a LC*D, GV2AF3, and GV2 device combination
Product Line:
Contactors and Starters IEC
Environment:
Tesys D contactors and GV manual starters
Cause:
Spacer required
Resolution:
Compensation plate catalog number GV1F03, requires 2 pieces snap together.
