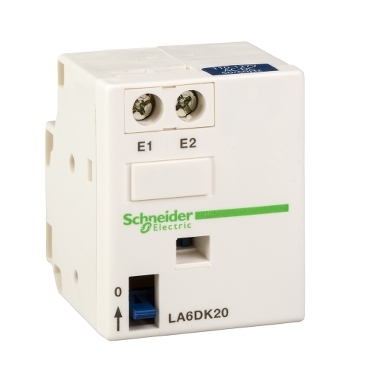

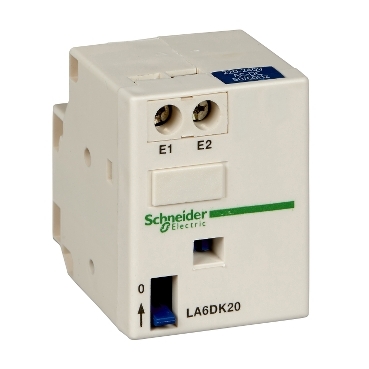

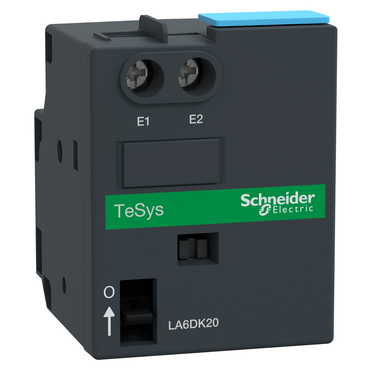

TeSys D Mechanical latch block TeSys Deca, 42...48V AC/DC

Home ProductsIndustrialTeSysMechanical latch block

TeSys D Mechanical latch block TeSys Deca, 42...48V AC/DC

Item Number: LA6DK20E

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

mechanical latch block

Product compatibility

  • LC1D80...D150 3 phases AC
  • LC1D80 3 phases DC
  • LC1D150 3 phases DC
  • LC1D80 3 phases + neutral AC
  • LC1D115 3 phases + neutral AC
  • LP1D80 3 phases + neutral DC
  • LC1D115 3 phases + neutral DC

Warranty

18 months

Physical

Mechanical durability

500000 cycles

Net weight

0.09 kg

Product certifications

  • CSA
  • UL

Ip degree of protection

IP2X conforming to IEC 60529

Ambient air temperature for operation

-25...55 °C

Ambient air temperature for storage

-40...80 °C

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2011001

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

32

Package 3 bare product quantity

1024

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

At least in Europe

[uc] control circuit voltage

  • 42/48 V AC 50/60 Hz
  • 42/48 V DC

Mounting location

front side

Tripping control

  • electrical
  • manual

[ui] rated insulation voltage

690 V conforming to IEC 60947-5-1

Power required in va

25 for AC circuit

Power required in w

30 W for DC circuit

Maximum operating rate

1200 cyc/h

On-load factor

10 %

Protective treatment

TH conforming to IEC 60068

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

6.500 cm

Package 1 length

4.700 cm

Package 1 weight

99.000 g

Unit type of package 2

S01

Number of units in package 2

32

Package 2 height

15 cm

Package 2 width

15 cm

Package 2 length

40 cm

Package 2 weight

3.368 kg

Unit type of package 3

P06

Number of units in package 3

1024

Package 3 height

75.000 cm

Package 3 width

80.000 cm

Package 3 length

60.000 cm

Package 3 weight

115.776 kg

Total lifecycle carbon footprint

4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.7611975955731428

Carbon footprint of the manufacturing phase [a1 to a3]

0.8 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.025858935055194092

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.017809845416982262

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

3.1606

Carbon footprint of the use phase [b2, b3, b4, b6]

3 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.22941219347095243

Carbon footprint of the end-of-life phase [c1 to c4]

0.2 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

4.194878569516272

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

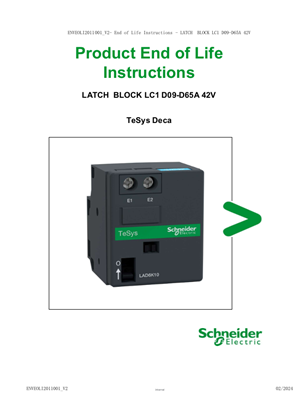

End of life manual availability

ENVEOLI2011001

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • End of Life Manual

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Mechanical latch block, Tesys Deca Advanced - 3D CAD
ZIP

Mechanical latch block, Tesys Deca Advanced - 3D CAD

VERSION

1.0

DATE

15 May 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
PEP_Contactors, TeSys K, 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil
ZIP

PEP_Contactors, TeSys K, 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil

VERSION

2.0

DATE

23 Oct 2025

REVISION

2.0

DOWNLOAD (ZIP) 256.2 KB
LATCH BLK LC1 D09-D65A 42V
ZIP

LATCH BLK LC1 D09-D65A 42V

VERSION

2.1

DATE

04 Mar 2024

REVISION

2.1

DOWNLOAD (ZIP) 649.7 KB

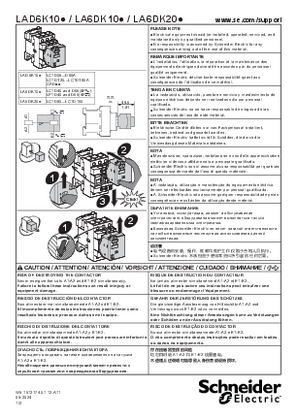

LA6-DK.. / LAD6K.. Mechanical latch blocks - Instruction Sheet
ZIP

LA6-DK.. / LAD6K.. Mechanical latch blocks - Instruction Sheet

VERSION

2.0

DATE

29 Jan 2025

REVISION

2.0

DOWNLOAD (ZIP) 538.7 KB

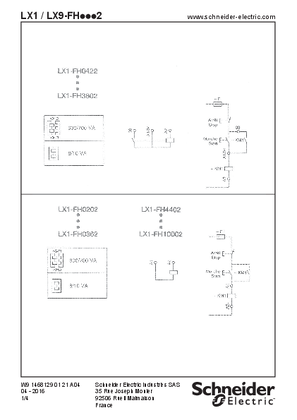

LX1 / LX9 FH…2 AC supply coils for LC1 F
ZIP

LX1 / LX9 FH…2 AC supply coils for LC1 F

VERSION

1.3

DATE

29 Sep 2023

REVISION

1.3

DOWNLOAD (ZIP) 3.2 MB
LATCH BLK LC1 D09-D65A 42V
ZIP

LATCH BLK LC1 D09-D65A 42V

VERSION

2.1

DATE

20 Feb 2024

REVISION

2.1

DOWNLOAD (ZIP) 634.2 KB
EU Declaration TeSys D -LC1D80-95&LC2D80-95
ZIP

EU Declaration TeSys D -LC1D80-95&LC2D80-95

VERSION

1.0

DATE

02 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 520 KB
UKCA Declaration TeSysD_LC.D115-150
ZIP

UKCA Declaration TeSysD_LC.D115-150

VERSION

1.0

DATE

05 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 411.6 KB
EU Declaration TeSys D_LC1D115-150 & LC2D115-150
ZIP

EU Declaration TeSys D_LC1D115-150 & LC2D115-150

VERSION

1.0

DATE

05 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 514.8 KB
UKCA Declaration TeSysD_LC1D80-95&LC2D80-95
ZIP

UKCA Declaration TeSysD_LC1D80-95&LC2D80-95

VERSION

1.0

DATE

05 Dec 2024

REVISION

1.0

DOWNLOAD (ZIP) 413.7 KB

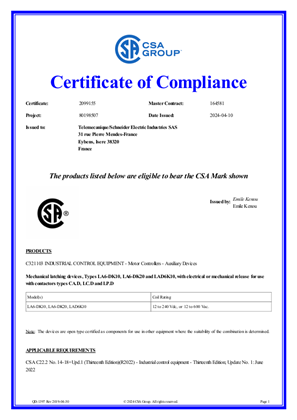

CSA Certificate_ TeSys D_LA6DK,LAD6K
ZIP

CSA Certificate_ TeSys D_LA6DK,LAD6K

VERSION

1.0

DATE

15 Sep 2024

REVISION

1.0

DOWNLOAD (ZIP) 172.6 KB

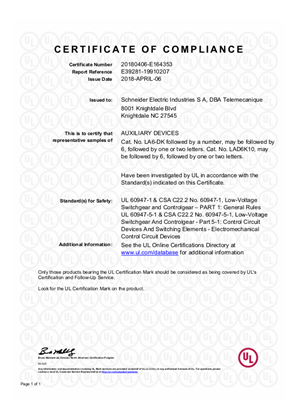

UL_Certificate_TeSys D_LAD6K,LA6DK
