Item Number: LAD9V2

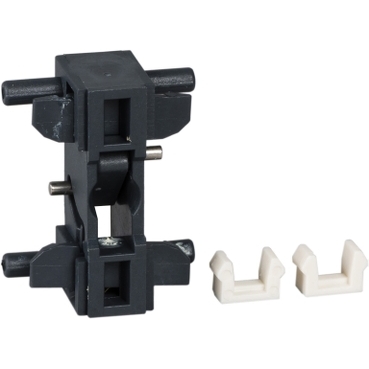

TeSys Deca mechanical interlock, for contactors LC1D09-D38 and LC1DT20-DT40. To be used for reversing and changeover assemblings. Without electrical interlocking.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

mechanical interlock

Product compatibility

  • LC1D09
  • LC1D12
  • LC1D18
  • LC1D25
  • LC1D32
  • LC1D38
  • LC1DT20
  • LC1DT25
  • LC1DT32
  • LC1DT40

Warranty

18 months

Physical

Range compatibility

TeSys TeSys D contactor

Net weight

0.04 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Average percentage of recycled plastic content

0 %

Package 4 bare product quantity

1120

Package 3 bare product quantity

140

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

No

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Legacy weee scope

Out

Device short name

LAD9

Accessory / separate part category

interlocking accessory

Interlocking type

mechanical

Poles description

  • 3P
  • 4P

Electrical circuit type

  • reversing
  • changeover

Compatibility code

LAD9

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

8.000 cm

Package 1 length

9.000 cm

Package 1 weight

11.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

9.500 cm

Package 2 width

10.000 cm

Package 2 length

15.200 cm

Package 2 weight

138.000 g

Unit type of package 3

S03

Number of units in package 3

140

Package 3 height

30.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

2.359 kg

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

Take-back

No

Warranty (in months)

18
Show all specifications
