TeSys GV2 Manual Stater Protector height compensation plate, 7.5mm

Home ProductsIndustrialTeSysManual Stater Protector

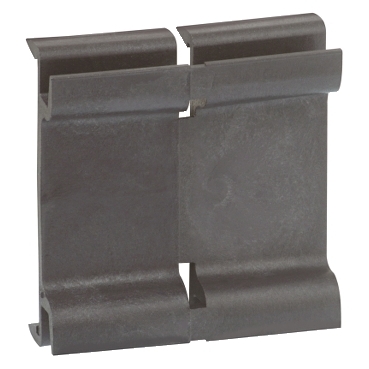

TeSys GV2 Manual Stater Protector height compensation plate, 7.5mm

Item Number: GV1F03

TeSys GV products provide efficient motor control and protection solutions up to 520 amps. This 7.5 mm compensation plate allows the mounting of GV2M and GV2P on a common bus bar. This plate is 1.54 inches tall, 1.38 inches wide and 0.51 inches deep.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width35 mm

Height icon

Height39 mm

Depth icon

Depth13 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys GV2
  • TeSys Deca

Range

TeSys

Product or component type

compensation plate

Warranty

18 months

Physical

Height

39 mm

Width

35 mm

Depth

13 mm

Net weight

0.003 kg

Quantity per set

set of 10

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

10

Package 3 bare product quantity

400

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GV1F

Accessory / separate part category

mounting accessory

Compatibility code

GV1F

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.000 cm

Package 1 width

9.000 cm

Package 1 length

2.670 cm

Package 1 weight

5.000 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

5.000 cm

Package 2 width

9.000 cm

Package 2 length

8.000 cm

Package 2 weight

57.000 g

Unit type of package 3

S02

Number of units in package 3

400

Package 3 height

15.000 cm

Package 3 width

30.000 cm

Package 3 length

40.000 cm

Package 3 weight

2.606 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications
