TeSys D Linergy FT Comb busbar for paralleling 3 Contactors

Home ProductsIndustrialTeSysLinergy FT

TeSys D Linergy FT Comb busbar for paralleling 3 Contactors

Item Number: GV3G364

TeSys GV busbar set, 3 phases, 115A/690V, for the upstream parallel wiring of groups of motor starters composed of GV3 motor circuit breakers. For use with Everlink BTR screw terminals devices, it is composed of 3 tap-off outlets for the paralleling of 3 devices with a pitch of 64mm.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys U
  • TeSys K
  • TeSys GV3
  • TeSys Deca

Range

Linergy

Product or component type

comb busbar

Product compatibility

  • LC1D40A...D65A
  • GV3L
  • GV3P

Warranty

18 months

Physical

Range compatibility

  • TeSys Deca
  • TeSys K
  • TeSys U
  • TeSys GV3

Fixing mode

terminals:

Width

183 mm

Net weight

0.25 kg

Reach free of svhc

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant with Exemptions

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

1

Legacy weee scope

In

Substance regulation data deliverable

Yes

Life cycle assessment data

Yes

At least in Europe

Package 2 bare product quantity

17

Average percentage of recycled plastic content

0 %

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

FT

Device short name

GV3G

Accessory / separate part category

connection accessory

Poles description

3P

Number of tap-offs

3

[ith] conventional free air thermal current

115 A

Connection pitch

64 mm

[ui] rated insulation voltage

690 V

Compatibility code

GV3G

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.000 cm

Package 1 width

5.000 cm

Package 1 length

18.500 cm

Package 1 weight

270.000 g

Unit type of package 2

S01

Number of units in package 2

17

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

4.701 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

30 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

5.484113459

Carbon footprint of the manufacturing phase [a1 to a3]

5 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.285446354

Carbon footprint of the distribution phase [a4]

0.3 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.106934439

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

21.07

Carbon footprint of the use phase [b2, b3, b4, b6]

21 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

2.575993493

Carbon footprint of the end-of-life phase [c1 to c4]

3 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

29.52248775

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Data Bulletin

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Declaration of Conformity

  • eTechPub

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys D - 3 BREAKERS POWER BUSBAR - 3D CAD
ZIP

TeSys D - 3 BREAKERS POWER BUSBAR - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 534.3 KB
Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

5.0

DATE

10 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 75.3 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 624.7 KB

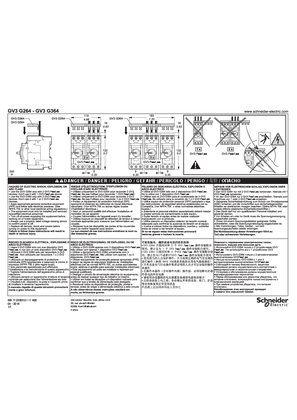

GV3 G264 G364 - Multi tape-off busbar for TeSys GV3 - Instruction sheet
