TeSys D Linergy FT Comb busbar 63 A, 2 tap-offs, 54mm pitch

Home ProductsIndustrialTeSysLinergy FT Comb busbar

TeSys D Linergy FT Comb busbar 63 A, 2 tap-offs, 54mm pitch

Item Number: GV2G254

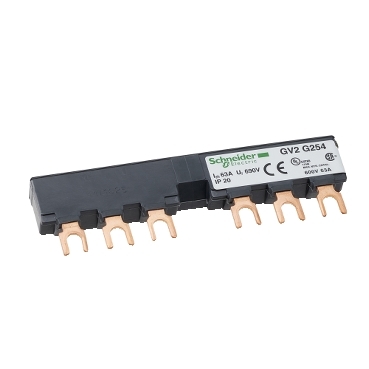

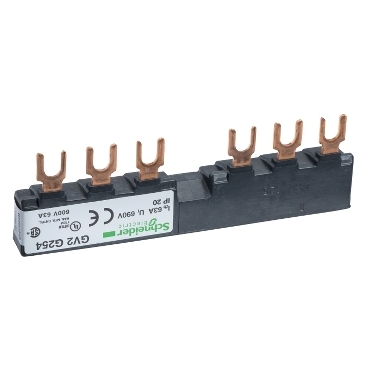

TeSys GV busbar set, 3 phases, 63A/690V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 2 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately).

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • TeSys GV2
  • TeSys fuse-disconnector
  • TeSys U
  • TeSys K
  • TeSys Deca

Range

Linergy

Product or component type

comb busbar

Warranty

18 months

Physical

Range compatibility

  • TeSys GV2
  • TeSys K
  • TeSys U
  • TeSys Deca

Fixing mode

terminals:

Width

98 mm

Net weight

0.038 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

80

Package 3 bare product quantity

2560

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

FT

Device short name

GV2G

Accessory / separate part category

connection accessory

Poles description

3P

Number of tap-offs

2

[ith] conventional free air thermal current

63 A

Connection pitch

54 mm

[ui] rated insulation voltage

690 V

Compatibility code

GV2G

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.000 cm

Package 1 width

8.000 cm

Package 1 length

14.000 cm

Package 1 weight

40.000 g

Unit type of package 2

S01

Number of units in package 2

80

Package 2 height

15.000 cm

Package 2 width

15.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.360 kg

Unit type of package 3

P06

Number of units in package 3

2560

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

118.100 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Data Bulletin

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys GV2 - 2 TAP-OFFS BUSBAR GV2 63A 54MM PITCH - 3D CAD
ZIP

TeSys GV2 - 2 TAP-OFFS BUSBAR GV2 63A 54MM PITCH - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 702.2 KB

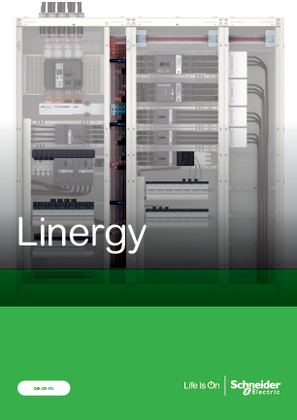

Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Discover catalog for Altivar 32 Variable Speed Drives
ZIP

Discover catalog for Altivar 32 Variable Speed Drives

VERSION

4.0

DATE

29 Sep 2023

REVISION

4.0

DOWNLOAD (ZIP) 4 MB

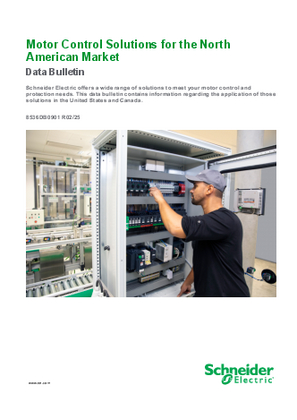

Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

5.0

DATE

10 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 75.3 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 624.7 KB

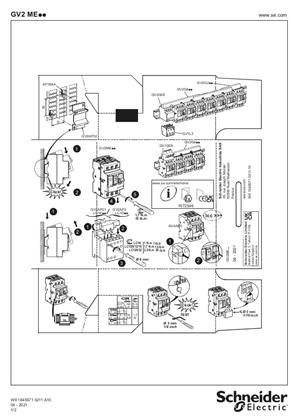

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
ZIP

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

VERSION

3.0

DATE

19 Dec 2024

REVISION

3.0

DOWNLOAD (ZIP) 1.3 MB

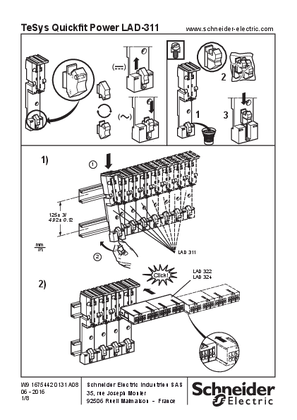

LAD-311 Motor starter components - TeSys Quickfit Power
ZIP

LAD-311 Motor starter components - TeSys Quickfit Power

VERSION

3.3

DATE

30 May 2024

REVISION

3.3

DOWNLOAD (ZIP) 8.9 MB

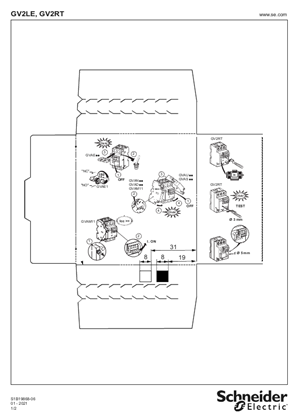

GV2LE / GV2RT Circuit breakers - Instruction sheet
ZIP

GV2LE / GV2RT Circuit breakers - Instruction sheet

VERSION

2.0

DATE

21 Dec 2022

REVISION

2.0

DOWNLOAD (ZIP) 784.2 KB
3 pole busbar 63 A. 2 tap-off, 54 mm pitch. - Dimensions - Technical drawing
ZIP

3 pole busbar 63 A. 2 tap-off, 54 mm pitch. - Dimensions - Technical drawing

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 93.8 KB
3 pole busbar 63 A. 2 tap-off, 72 mm pitch. - Dimensions - Technical drawing
ZIP

3 pole busbar 63 A. 2 tap-off, 72 mm pitch. - Dimensions - Technical drawing

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 93.8 KB
UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
ZIP

UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM

VERSION

1.0

DATE

30 Aug 2025

REVISION

1.0

DOWNLOAD (ZIP) 379.1 KB

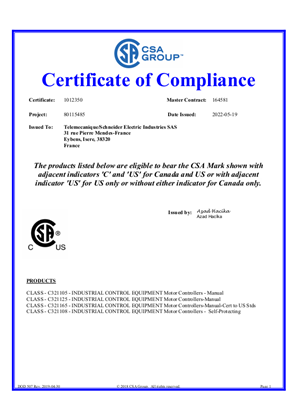

CSA Certificate_TeSys GV2ME&GV2RT&GV2P&GV2MC&GV2MP and GV2P Type E & GV2P combined with LC1D09-38 type F
ZIP

CSA Certificate_TeSys GV2ME&GV2RT&GV2P&GV2MC&GV2MP and GV2P Type E & GV2P combined with LC1D09-38 type F

VERSION

1.0

DATE

29 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 163.7 KB

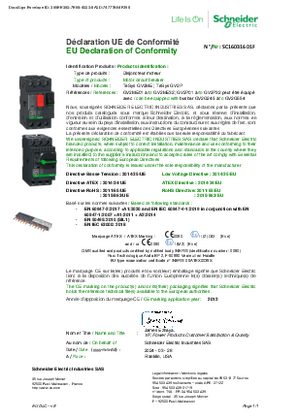

EU Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
ZIP

EU Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM

VERSION

2.0

DATE

27 Aug 2025

REVISION

2.0

DOWNLOAD (ZIP) 394.2 KB

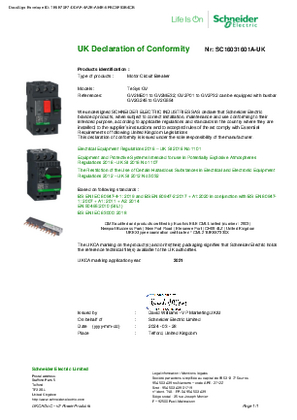

UKCA Declaration TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
