TeSys D Kit for Star Delta Starter assembly of for 2 x LC1D80 Contactors and 1 x LC1D50 or LC1D65 Contactor with timer block

Home ProductsIndustrialTeSysKit for Star Delta Starter assembly of for 2 x LC1D80 Contactors and 1 x LC1D50 or LC1D65 Contactor

TeSys D Kit for Star Delta Starter assembly of for 2 x LC1D80 Contactors and 1 x LC1D50 or LC1D65 Contactor with timer block

Item Number: LA9D8017

This product is a star delta starter assembly kit. It is used for 2 x LC1D80 contactors and 1 x LC1D50 or LC1D65 contactor, with 1 time delay contact block LAD S2. It is used by screws and clamps for fixing contactors to the plate.

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

starter assembly

Product compatibility

  • LC1D80 (Main & Delta)
  • LC1D50 or LC1D65 (Star)

Warranty

18 months

Physical

Range compatibility

TeSys TeSys Deca

Net weight

0.68 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP110702EN_V01

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

TeSys Deca

Device short name

LA9D

Poles description

3P

Kit composition

  • set of power connection
  • time delay contact block LAD S2
  • screws and clamps for fixing contactors to the plate

Compatibility code

LA9D

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.000 cm

Package 1 width

14.000 cm

Package 1 length

17.500 cm

Package 1 weight

618.000 g

Unit type of package 2

S03

Number of units in package 2

20

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

12.864 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

End of life manual availability

N/A

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Linergy - Distribution and Connection Systems - English
ZIP

Linergy - Distribution and Connection Systems - English

VERSION

6.1

DATE

15 Sep 2025

REVISION

6.1

DOWNLOAD (ZIP) 45.9 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Time delay auxiliary contact block, TeSys Deca
ZIP

Time delay auxiliary contact block, TeSys Deca

VERSION

1.0

DATE

23 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 379.5 KB
PEP_Contactors, TeSys D,Time delay auxiliary contact block,1NO + 1NC, on delay 1-30 s, front mounting, screw terminals
ZIP

PEP_Contactors, TeSys D,Time delay auxiliary contact block,1NO + 1NC, on delay 1-30 s, front mounting, screw terminals

VERSION

1.0

DATE

16 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 865.5 KB

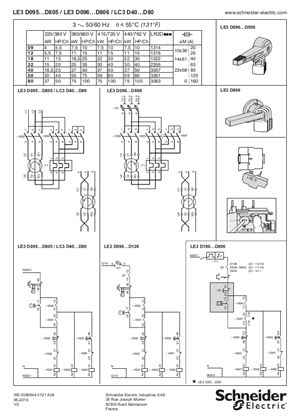

LE3D/LC3D Star delta starters
