TeSys D Kit for Star Delta Starter assembly of for 2 x Contactors LC1D25-D38 and star LC1D09-D18 with timer block
Item Number: LAD93217

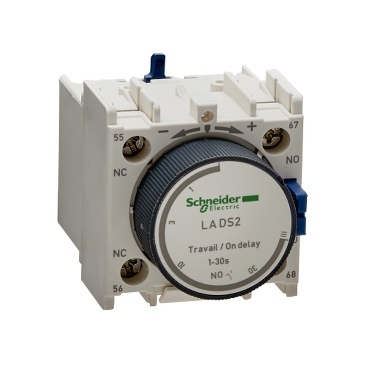

TeSys Deca mounting kit, for star-delta starter assembly with 3-pole contactors LC1D09-D38 (star contactor physically smaller in depth). For motor applications up to 25kW@400V in delta connection. It contains power circuit connections, screws and clamps for fixing 3 contactors to a plate, a time delay contact block LADS2 (1-30s).
Datasheet
Specifications
Design
| Range of product | TeSys Deca |
|---|---|
| Range | TeSys |
| Product or component type | starter assembly |
| Product compatibility | LC1D25...D38 |
| Warranty | 18 months |
Physical
| Range compatibility | TeSys TeSys Deca |
|---|---|
| Net weight | 0.31 kg |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
