TeSys D Kit for assembling 3P reversing Contactors LC1D40A-D80A with screw clamp terminals, without electrical interlock

Item Number: LAD9R3

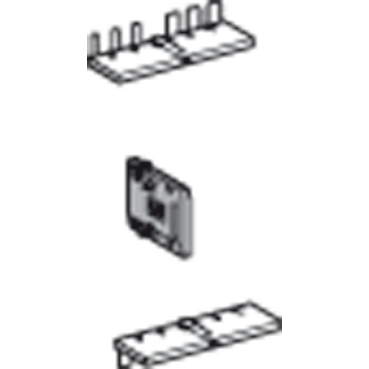

TeSys Deca kit for reversing contactors assembly, for 3-pole contactors LC1D40A-D80A. For assembling 2 identical contactors horizontally mounted, connection by EverLink BTR screw terminals. It contains a mechanical interlock LAD4CM, a set of power connections LA9D65A69. It conforms to RoHS/REACh regulation.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

  • TeSys
  • Linergy

Product or component type

kits for reversing contactor

Product compatibility

  • LC1D40A
  • LC1D50A
  • LC1D65A
  • LC1D80A

Warranty

18 months

Physical

Range compatibility

  • TeSys TeSys D contactor
  • TeSys TeSys Deca

Net weight

0.17 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1505009EN

Circularity profile

ENVEOLI1505009EN

Others

Package 1 bare product quantity

1

Device short name

LAD9

Poles description

3P

Kit composition

  • mechanical interlock
  • set of power connection

Compatibility code

LAD9

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4 cm

Package 1 width

12 cm

Package 1 length

6 cm

Package 1 weight

163 g

Unit type of package 2

S01

Number of units in package 2

24

Package 2 height

15 cm

Package 2 width

15 cm

Package 2 length

40 cm

Package 2 weight

4.105 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

F-gas usage performance

N/A

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity

Frequently Asked Questions

LAD9R3 kit components

Hide Show

Issue:
What does the LAD9R3 reversing interlock kit include

Product Line:
LC1D contactors
LC2D reversing contactors

Environment:
US Product

Cause:
It is necessary to ensure that this kit will include all of the pieces an End User would need.

Resolution:
This kit includes a mechanical interlock (LAD4CM) as well as reversing power connections (LA9D65A69).
