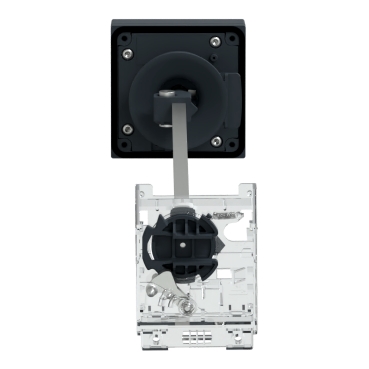

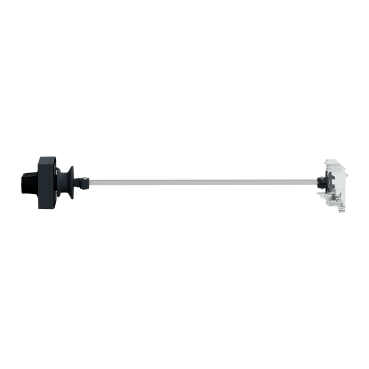

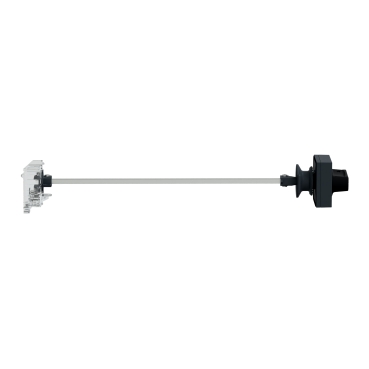

TeSys GV2 Extended rotary handle kit TeSys Deca, IP54, black handle, with trip indication, for GV2L-GV2P

Home ProductsIndustrialTeSysExtended rotary handle kit

TeSys GV2 Extended rotary handle kit TeSys Deca, IP54, black handle, with trip indication, for GV2L-GV2P

Item Number: GV2APN01

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

rotary handle kit

Product compatibility

  • GV2P
  • GV2L

Warranty

18 months

Physical

Net weight

0.3 kg

Product certifications

cULus

Ip degree of protection

IP54

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

12

Package 3 bare product quantity

96

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GV2AP

Accessory / separate part category

control accessory

Handle colour

black

Handle front plate colour

grey

Rotary handle padlocking

  • padlock in OFF position
  • padlock in ON position

Rotary handle mounting style

extended

Locking options description

1 to 3 padlocks

Back/door distance

140...250 mm

Compatibility code

GV2AP

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.000 cm

Package 1 width

9.000 cm

Package 1 length

37.400 cm

Package 1 weight

327.000 g

Unit type of package 2

S03

Number of units in package 2

12

Package 2 height

30 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

4.390 kg

Unit type of package 3

P06

Number of units in package 3

96

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

45.392 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

66ab381c-81b1-42a8-ae7a-ce3f5adb691a

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Data Bulletin

  • End of Life Manual

  • Environmental Disclosure

  • Installation Instruction

  • Technical illustration

  • Technical Drawing

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
KIT HANDLE GV2 BLACK IP54 W and O TRIP
ZIP

KIT HANDLE GV2 BLACK IP54 W and O TRIP

VERSION

1.0

DATE

11 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 671.7 KB
TeSys GV2 - KIT IP54 BLACK HANDLE - SHAFT FRONT GV2P - 3D CAD
ZIP

TeSys GV2 - KIT IP54 BLACK HANDLE - SHAFT FRONT GV2P - 3D CAD

VERSION

1.0

DATE

03 Mar 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.1 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

5.0

DATE

10 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 75.3 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 624.7 KB

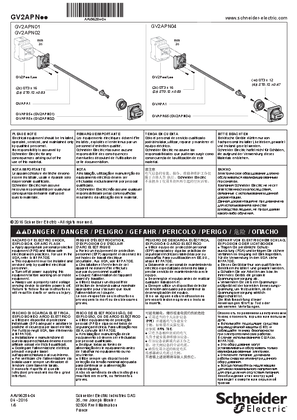

GV2APN - External operator for TeSys GV2P/L - Instruction Sheet
ZIP

GV2APN - External operator for TeSys GV2P/L - Instruction Sheet

VERSION

2.0

DATE

16 Nov 2023

REVISION

2.0

DOWNLOAD (ZIP) 3.7 MB

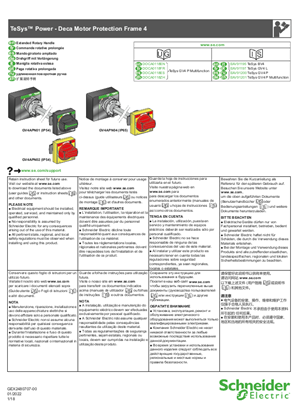

TeSys Deca Motor Protection Frame 4 - Extended Rotary Handle - Instruction Sheet
ZIP

TeSys Deca Motor Protection Frame 4 - Extended Rotary Handle - Instruction Sheet

VERSION

1.0

DATE

16 Nov 2023

REVISION

1.0

DOWNLOAD (ZIP) 22.6 MB

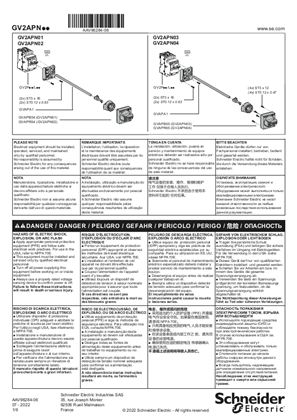

GV2APN01_instruction_sheet
ZIP

GV2APN01_instruction_sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 7 MB
TeSys KIT IP54 BLACKHANDLE-SHAFT FRONT - TI
ZIP

TeSys KIT IP54 BLACKHANDLE-SHAFT FRONT - TI

VERSION

1.0

DATE

19 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 369.2 KB

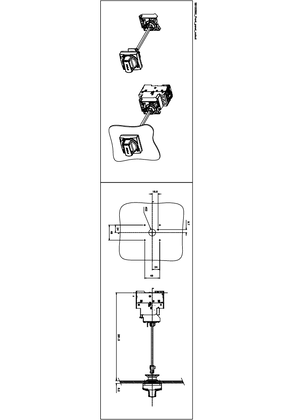

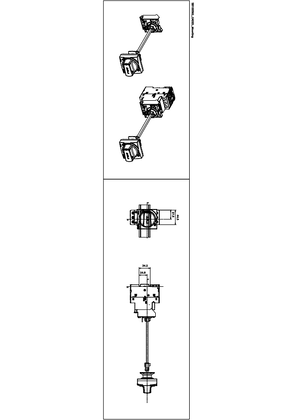

Kit IP54 black handle - For circuit-breakers GV2P-L Technical drawings
