Specifications
Design
| Range | TeSys |
|---|---|
| Product or component type | enclosed DOL starter |
| Device application | standard |
| Warranty | 18 months |
Physical
| Control type |
|
|---|---|
| Width | 101 mm |
| Height | 201 mm |
| Depth | 153.5 mm |
| Net weight | 1.015 kg |
| [ie] rated operational current | 25 A AC-3 |
| Standards |
|
| Product certifications |
|
| Ip degree of protection | IP65 conforming to IEC 60529 |
| Ik degree of protection | IK07 conforming to IEC 60529 |
| Ambient air temperature for operation | -5...40 °C |
| Environmental characteristic | standard environment |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2107010EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | X |
| Eu rohs directive | Compliant |
Material
| Device composition |
|
|---|---|
| Material | polycarbonate |
Documents & downloads
Filter items
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Environmental Disclosure
-
End of Life Manual
-

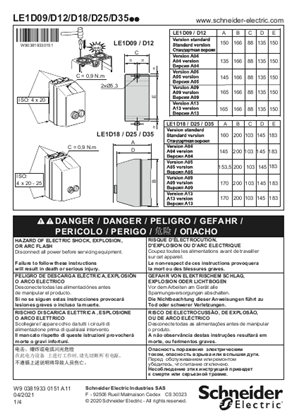

Installation Instruction
-
Technical illustration
-
Certificates (MSDS)
-

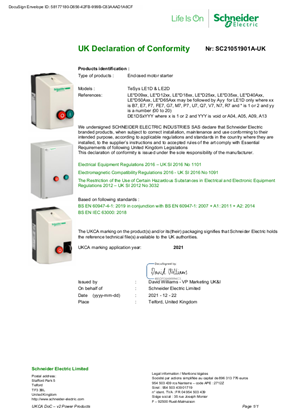

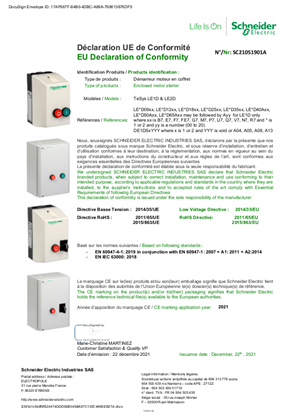

Declaration of Conformity
-
