Enclosed non-reversing starter LE1D for motor control without isolating device, with pushbutton "I" & pushbutton "O", 18A to 35A

Home ProductsIndustrialTeSysEnclosed DOL Starter

TeSys LE Enclosed DOL Starter 18A, 380 V AC coil

Item Number: LE1D18Q7

1 PCE 0

Where To Buy

Datasheet

Download

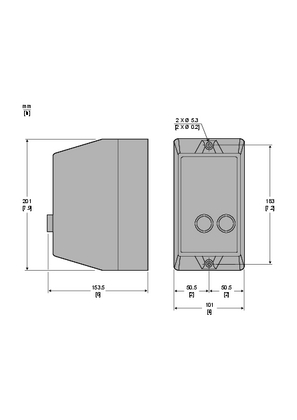

Product Dimensions

Width101 mm

Height201 mm

Depth153.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110578355	-

Specifications

Design

Range	TeSys
Product or component type	enclosed DOL starter
Device application	standard
Warranty	18 months

Physical

Control type	push-button start green I push-button stop/reset red O
Width	101 mm
Height	201 mm
Depth	153.5 mm
Net weight	1.015 kg
[ie] rated operational current	18 A AC-3
Standards	IEC 60947-4-1
Product certifications	CB Scheme CE UKCA
Ip degree of protection	IP65 conforming to IEC 60529
Ik degree of protection	IK07 conforming to IEC 60529
Ambient air temperature for operation	-5...40 °C
Environmental characteristic	standard environment
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2107010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant

Material

Device composition	thermal overload relay ordered separately contactor
Material	polycarbonate

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Average percentage of recycled plastic content	0 %
Package 2 bare product quantity	22
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Legacy weee scope	In
	At least in Europe
Product name	TeSys LE
Device short name	LE1D
Utilisation category	AC-3
Motor power kw	10 kW at 500 V AC 50/60 Hz 10 kW at 660/690 V AC 50/60 Hz 4 kW at 220/230 V AC 50/60 Hz 9 kW at 415 V AC 50/60 Hz 9 kW at 440 V AC 50/60 Hz 7.5 kW at 380/400 V AC 50/60 Hz
[uc] control circuit voltage	380 V AC 50/60 Hz
[ithe] conventional enclosed thermal current	17 A
Cable entry number	2 ISO20 top 2 ISO25 top 2 ISO20 bottom 2 ISO25 bottom
Compatibility code	LE1D
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	24.500 cm
Package 1 width	20.000 cm
Package 1 length	16.200 cm
Package 1 weight	1.174 kg
Unit type of package 2	P06
Number of units in package 2	22
Package 2 height	75.000 cm
Package 2 width	60.000 cm
Package 2 length	80.000 cm
Package 2 weight	38.740 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	125 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	9.148897834934361
Carbon footprint of the manufacturing phase [a1 to a3]	9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.12285078834900968
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.004584751001139686
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	113.09865598349461
Carbon footprint of the use phase [b2, b3, b4, b6]	113 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	2.3920097603484543
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	124.76699911812757
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	9f35ee05-3751-48fa-a30a-96c8b2cda02b
China rohs label	1
End of life manual availability	ENVEOLI2107010
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
