TeSys k Electronic time delay Auxiliary Contact Block TeSys K, 1C/O, on delay 1-30s, front, control 24-48 V AC/DC

Item Number: LA2KT2E

1 PCE 0

TeSys K electronic time delay contact block, for contactors LC.K, LP.K, CA.K. It provides 1C/O contact rated up to 2A 240V AC, with an on-delay setting range 1-30s. To be used for contactors with 24-48V AC/DC coils (B7 to E7, BD to ED). Front mounting by clip-on, connections by attached wires to the contactor. It conforms to RoHS/REACh regulation.

Where To Buy

Datasheet

Download

Product Dimensions

Width38 mm

Height27 mm

Depth38 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110230048	-

Specifications

Design

Range	TeSys
Range of product	TeSys K control relay TeSys K
Product or component type	time delay auxiliary contact block

Physical

Range compatibility	TeSys K LC1K TeSys K CA2K TeSys K CA3K TeSys K CA4K
[ue] rated operational voltage	24...48 V AC/DC for control circuit 240 V AC for signalling circuit
Standards	EN/IEC 60947-5-1
Product certifications	CE UKCA
Insulation resistance	> 10 MOhm
Connections - terminals	slip-on terminals
Height	27 mm
Width	38 mm
Depth	38 mm
Net weight	0.04 kg
Environmental characteristic	normal environment
Ip degree of protection	IP20 conforming to IEC 60529
Ambient air temperature for operation	-10...60 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2106022EN
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Legacy weee scope	In
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	Accessory
Life cycle assessment data	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Product name	TeSys K
Device short name	LA1
Mounting location	front
Pole contact composition	1 C/O
Auxiliary contacts operation	time delay
Timer type	on delay
Time delay range	1...30 s
Rated operational voltage limits	0.85...1.1 Uc
[ith] conventional free air thermal current	2 A for signalling circuit
Shielding continuity terminal	without
Reset time	1.5 s during time delay 0.5 s after time delay
Compatibility code	LA1
Protective treatment	TC conforming to IEC 60068
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	4.800 cm
Package 1 length	4.800 cm
Package 1 weight	40.000 g
Unit type of package 2	S02
Number of units in package 2	70
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	3.110 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.8185244444444444
Carbon footprint of the manufacturing phase [a1 to a3]	0.8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0052306666666666665
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0038499555555555555
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.1606
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.10090666666666666
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	4.0891117333333336
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	8a21c0d1-be95-4e83-b703-1e8075e942f8
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Technical illustration
Technical Drawing
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys k Electronic time delay Auxiliary Contact Block TeSys K, 1C/O, on delay 1-30s, front, control 24-48 V AC/DC

Item Number: LA2KT2E

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Technical illustration

Technical Drawing

Declaration of Conformity

Declaration of Conformity (Sustainability)

TeSys k - TIMER DELAY ON - 3D CAD

Auxiliary Time Delay Block, K-Line

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

TESYS K auxiliary contact module

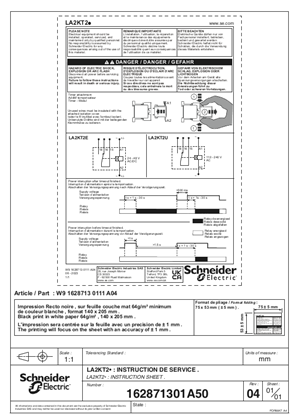

LA2KT2. time delayed auxiliary contacts - Instruction Sheet

CA2/CA3/CA4/LC./LP.-K Add-on contact blocks and surge supressor - Instruction sheet

TIMER DELAY ON - TI

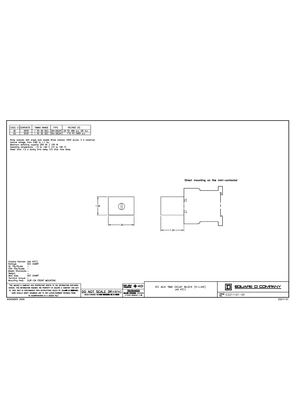

Technical drawing for Auxiliary Time Delay Block, K-Line

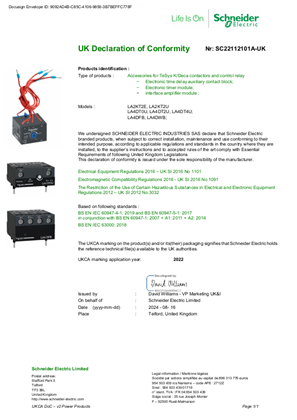

UKCA Declaration TeSys K_TeSys Deca_LA2KT_LA4DT_LA4DFB_LA4DWB

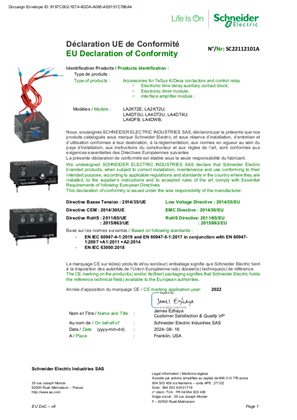

EU_Declaration_TeSys K_TeSys Deca_LA2KT_LA4DT_LA4DFB_LA4DWB
