TeSys D Control Relay 5 NO, <= 690V, 72VDC, Low Consumption Coil

Item Number: CAD50SL

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width45 mm

Height77 mm

Depth93 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110407044	-

Specifications

Design

Range	TeSys
Range of product	TeSys D control relay
Product or component type	control relay
Warranty	18 months

Physical

[ue] rated operational voltage	<= 690 V AC 25...400 Hz
Mounting support	plate rail
Connections - terminals	screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end
Mechanical durability	30 Mcycles
Insulation resistance	> 10 MOhm
Height	77 mm
Width	45 mm
Depth	93 mm
Net weight	0.58 kg
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1
Product certifications	CB CCC UL CSA EAC CE UKCA
Ip degree of protection	IP2X conforming to VDE 0106
Ambient air temperature for operation	-40...60 °C 60...70 °C with derating
Ambient air temperature for storage	-60...80 °C

Others

Warranty duration(in months) bmecat	18
	At least in Europe
Product name	TeSys CAD
Device short name	CAD
Contactor application	control circuit
Utilisation category	AC-15 DC-13 AC-14
Pole contact composition	5 NO
Control circuit type	DC low consumption
[uc] control circuit voltage	72 V DC
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
[ith] conventional free air thermal current	10 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
[icw] rated short-time withstand current	100 A - 1 s 120 A - 500 ms 140 A - 100 ms
Associated fuse rating	10 A gG conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1
Tightening torque	1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit voltage limits	0.1...0.25 Uc (-40-70 °C):drop-out DC 0.7...1.25 Uc (-40-60 °C):operational DC 1...1.25 Uc (60-70 °C):operational DC
Operating time	65...88 ms coil energisation and NO closing 14...25 ms coil de-energisation and NO opening
Maximum operating rate	180 cyc/mn
Time constant	40 ms
Inrush power in w	2.4...2.4 W (at 20 °C)
Hold-in power consumption in w	2.4...2.4 W at 20 °C
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non-overlap time	1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
Mechanical robustness	shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Compatibility code	CAD
Protective treatment	TH conforming to IEC 60068
Operating altitude	0...3000 m
Unit type of package 1	PCE
Number of units in package 1	1
Sustainable packaging	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Drawing
Certificates (MSDS)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

CAD50SL_CAD_DOC

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 680.7 KB

ZIP

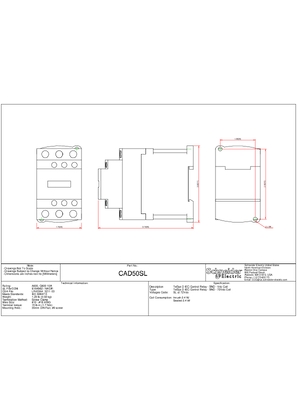

CAD50SL_2DSalesDrawing_PDF

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 26.3 KB

ZIP

BIS License for Low-Voltage Switchgear and Control gear : Part 5-1 Control Circuit Devices and Switching Elements Electromechanical Control Circuit Devices

VERSION

1.0

DATE

17 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 3.3 MB
