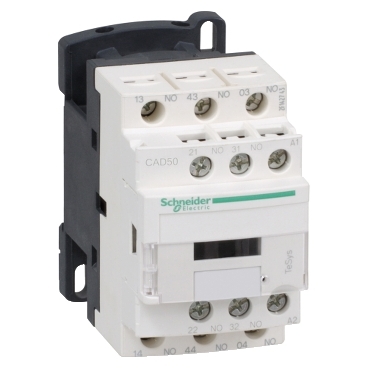

TeSys D Control Relay 5 NO, <= 690V, 12VDC, Standard Coil

Item Number: CAD50JD

1 PCE 0

Where To Buy

Datasheet

Download

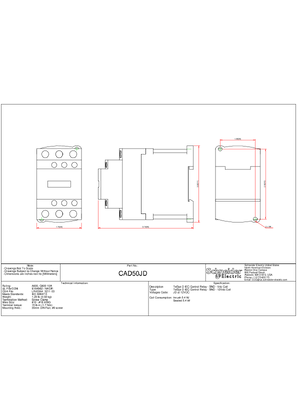

Product Dimensions

Width45 mm

Height77 mm

Depth93 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110406160	-

Specifications

Design

Range	TeSys
Range of product	TeSys D control relay
Product or component type	control relay
Warranty	18 months

Physical

[ue] rated operational voltage	<= 690 V AC 25...400 Hz
Mounting support	plate rail
Connections - terminals	screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end
Mechanical durability	30 Mcycles
Insulation resistance	> 10 MOhm
Height	77 mm
Width	45 mm
Depth	93 mm
Net weight	0.58 kg
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1
Product certifications	CB Scheme CCC UL CSA EAC CE UKCA
Ip degree of protection	IP2X front face conforming to VDE 0106
Ambient air temperature for operation	-40...60 °C 60...70 °C with derating
Ambient air temperature for storage	-60...80 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP110230EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Product name	TeSys CAD
Device short name	CAD
Contactor application	control circuit
Utilisation category	AC-14 AC-15 DC-13
Pole contact composition	5 NO
Control circuit type	DC standard
[uc] control circuit voltage	12 V DC
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
[ith] conventional free air thermal current	10 A (at 60 °C)
Irms rated making capacity	140 A AC conforming to IEC 60947-5-1 250 A DC conforming to IEC 60947-5-1
[icw] rated short-time withstand current	100 A - 1 s 120 A - 500 ms 140 A - 100 ms
Associated fuse rating	10 A gG conforming to IEC 60947-5-1
[ui] rated insulation voltage	600 V UL certified 600 V CSA certified 690 V conforming to IEC 60947-5-1
Tightening torque	1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit voltage limits	0.1...0.25 Uc (-40-70 °C):drop-out DC 0.7...1.25 Uc (-40-60 °C):operational DC 1...1.25 Uc (60-70 °C):operational DC
Operating time	53...72 ms coil energisation and NO closing 16...24 ms coil de-energisation and NO opening
Maximum operating rate	180 cyc/mn
Time constant	28 ms
Inrush power in w	5.4...5.4 W (at 20 °C)
Hold-in power consumption in w	5.4...5.4 W at 20 °C
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non-overlap time	1.5 ms on energisation between NC and NO contact 1.5 ms on de-energisation between NC and NO contact
Mechanical robustness	shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6
Compatibility code	CAD
Protective treatment	TH conforming to IEC 60068
Operating altitude	0...3000 m
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.9 cm
Package 1 width	11.1 cm
Package 1 length	8.9 cm
Package 1 weight	362 g
Total lifecycle carbon footprint	38 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.1662563038543174
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.17499315126665246
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.048458574119927315
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	32.70348648648649
Carbon footprint of the use phase [b2, b3, b4, b6]	33 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.5333878987247123
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Take-back	No
Total lifecycle carbon footprint	37.6265824144521
Average percentage of recycled metal content	0 %
End of life manual availability	ENVEOLI1102030EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
