TeSys D, Control Relay, 5 NO, <= 690V, 12VDC, Low Consumption Coil

Item Number: CAD50JL

[NO COLOUR] 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110407020	-

Specifications

Design

Range

TeSys

Range of product

TeSys D control relay

Product or component type

control relay

Warranty

18 months

Physical

[ue] rated operational voltage

<= 690 V AC 25...400 Hz

Mounting support

plate|rail

Connections - terminals

screw clamp terminals 1 cable(s) 1-4 mm²flexible without cable end|screw clamp terminals 2 cable(s) 1-4 mm²flexible without cable end|screw clamp terminals 1 cable(s) 1-4 mm²flexible with cable end|screw clamp terminals 2 cable(s) 1-2.5 mm²flexible with cable end|screw clamp terminals 1 cable(s) 1-4 mm²solid without cable end|screw clamp terminals 2 cable(s) 1-4 mm²solid without cable end

Mechanical durability

30 Mcycles

Insulation resistance

> 10 MOhm

Height

77 mm

Width

45 mm

Depth

93 mm

Net weight

0.58 kg

Standards

EN/IEC 60947-5-1|GB/T 14048.5|UL 60947-5-1|CSA C22.2 No 60947-5-1|JIS C8201-5-1

Product certifications

CB Scheme|CCC|UL|CSA|EAC|CE|UKCA

Ip degree of protection

IP2X conforming to VDE 0106

Ambient air temperature for operation

-40...60 °C|60...70 °C with derating

Ambient air temperature for storage

-60...80 °C

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Product name

TeSys CAD

Device short name

CAD

Contactor application

control circuit

Utilisation category

DC-13|AC-15|AC-14

Pole contact composition

5 NO

Control circuit type

DC low consumption

[uc] control circuit voltage

12 V DC

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

[ith] conventional free air thermal current

10 A (at 60 °C)

Irms rated making capacity

140 A AC conforming to IEC 60947-5-1|250 A DC conforming to IEC 60947-5-1

[icw] rated short-time withstand current

100 A - 1 s|120 A - 500 ms|140 A - 100 ms

Associated fuse rating

10 A gG conforming to IEC 60947-5-1

[ui] rated insulation voltage

600 V UL certified|600 V CSA certified|690 V conforming to IEC 60947-5-1

Tightening torque

1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2|1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm

Control circuit voltage limits

0.1...0.25 Uc (-40-70 °C):drop-out DC|0.7...1.25 Uc (-40-60 °C):operational DC|1...1.25 Uc (60-70 °C):operational DC

Operating time

65...88 ms coil energisation and NO closing|14...25 ms coil de-energisation and NO opening

Maximum operating rate

180 cyc/mn

Time constant

40 ms

Inrush power in w

2.4...2.4 W (at 20 °C)

Hold-in power consumption in w

2.4...2.4 W at 20 °C

Minimum switching voltage

17 V

Minimum switching current

5 mA

Non-overlap time

1.5 ms on energisation between NC and NO contact|1.5 ms on de-energisation between NC and NO contact

Mechanical robustness

shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27|shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27|vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6|vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6

Compatibility code

CAD

Protective treatment

TH conforming to IEC 60068

Operating altitude

0...3000 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.9 cm

Package 1 width

11.1 cm

Package 1 length

8.9 cm

Package 1 weight

362 g

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Show all specifications

Documents & downloads

hide show

Colour [NO COLOUR] ()

TeSys D, Control Relay, 5 NO, <= 690V, 12VDC, Low Consumption Coil

Item Number: CAD50JL

Colour [NO COLOUR] ()

Datasheet

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Technical Drawing

Certificates (MSDS)

Declaration of Conformity

CAD50JL_CAD_DOC

LC1E40-65 3P - 3D CAD

TeSys - Catalog 2023 - Innovative and connected solutions for motor starters

LC1D 9 to 38 A AC/DC contactors with screw clamp terminals - Instruction Sheet

Eoli_Contactors, TeSys D, AC 25 to 38A

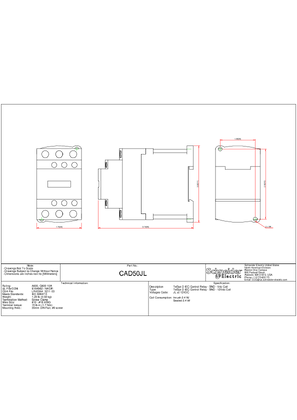

CAD50JL_2DSalesDrawing_PDF
