TeSys K Control Relay 4P(2NO+2NC), 690V, 230V AC coil, without integral suppression device

Item Number: CA2KN223P7

1 PCE 0

Where To Buy

Datasheet

Download

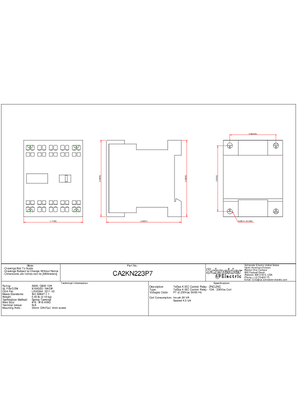

Product Dimensions

Width45 mm

Height58 mm

Depth57 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110241631	-

Specifications

Design

Range of product	TeSys K control relay
Range	TeSys
Product or component type	control relay
Warranty	18 months

Physical

[ue] rated operational voltage	<= 690 V <= 400 Hz
Mounting support	plate rail
Connections - terminals	spring terminals 1 cable(s) 0.75-1.5 mm²solid spring terminals 1 cable(s) 0.75-1.5 mm²flexible without cable end
Mechanical durability	10 Mcycles
Insulation resistance	> 10 MOhm
Height	58 mm
Width	45 mm
Depth	57 mm
Net weight	0.18 kg
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1

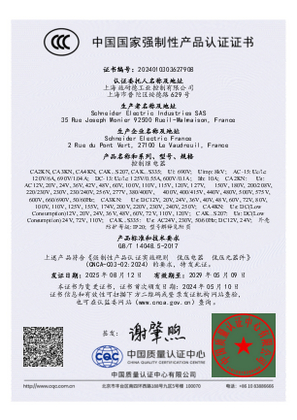

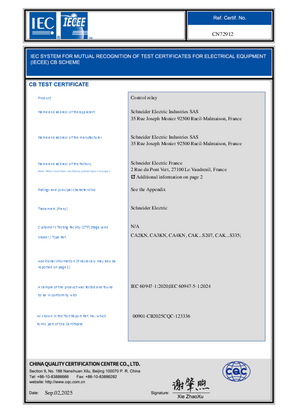

Product certifications	CB Scheme CCC UL CSA EAC CE UKCA
Ambient air temperature for operation	-25...50 °C
Ambient air temperature for storage	-50...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1503003EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	50
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys CAK
Device short name	CA2K
Contactor application	control circuit
Utilisation category	AC-15 DC-13
Pole contact composition	2 NO + 2 NC
Control circuit type	AC at 50/60 Hz
[uc] control circuit voltage	230 V AC 50/60 Hz
[ith] conventional free air thermal current	10 A (at 50 °C)
Irms rated making capacity	110 A conforming to IEC 60947
Associated fuse rating	10 A gG conforming to IEC 60947 10 A gG conforming to VDE 0660
[ui] rated insulation voltage	690 V conforming to IEC 60947 750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14
Control circuit voltage limits	drop-out: 0.2...0.75 Uc (at <50 °C) operational: 0.8...1.15 Uc (at <50 °C)
Operating time	10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing 15...25 ms coil de-energisation and NC closing 5...15 ms coil energisation and NC opening
Maximum operating rate	10000 cyc/h
Immunity to microbreaks	2 ms
Inrush power in va	30 VA (at 20 °C)
Hold-in power consumption in va	4.5...4.5 VA (at 20 °C)
Heat dissipation	1.3...1.3 W
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non overlap distance	0.5 mm
Compatibility code	CA2K
Protective treatment	TC conforming to IEC 60068
Operating altitude	2000 m without derating
Flame retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Mechanical robustness	vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27 shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.800 cm
Package 1 width	5.800 cm
Package 1 length	6.400 cm
Package 1 weight	183.000 g
Unit type of package 2	S02
Number of units in package 2	50
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	9.655 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	87 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.9396897035502854
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.36267187647066673
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.024932185363477775
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	84.9786228661371
Carbon footprint of the use phase [b2, b3, b4, b6]	85 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.26336858558790344
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	86.56928521710942
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
End of life manual availability	ENVEOLI1503003
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
