TeSys K, Control Relay, 2 NO + 2 NC , <= 690 V , 500 V AC coil

Item Number: CA2KN22S7

1 PCE 0

Where To Buy

Datasheet

Download

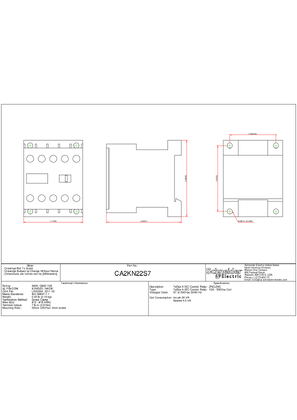

Product Dimensions

Width45 mm

Height58 mm

Depth57 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389110481365	-

Specifications

Design

Range of product

TeSys K control relay

Range

TeSys

Product or component type

control relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[ue] rated operational voltage

<= 690 V <= 400 Hz

Mounting support

rail|plate

Connections - terminals

screw clamp terminals 1 cable(s) 1.5-4 mm²solid|screw clamp terminals 2 cable(s) 1.5-4 mm²solid|screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end|screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end|screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end

Mechanical durability

10 Mcycles

Insulation resistance

> 10 MOhm

Height

58 mm

Width

45 mm

Depth

57 mm

Net weight

0.18 kg

Standards

EN/IEC 60947-4-1|GB/T 14048.4|UL 60947-4-1|CSA C22.2 No 60947-4-1|JIS C8201-4-1

Product certifications

CB Scheme|CCC|UL|CSA|EAC|CE|UKCA

Ip degree of protection

IP2X

Ambient air temperature for operation

-25...50 °C

Ambient air temperature for storage

-50...80 °C

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1503003EN

Circularity profile

ENVEOLI1503003EN

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Product name

TeSys CAK

Device short name

CA2K

Contactor application

control circuit

Utilisation category

AC-15|DC-13

Pole contact composition

2 NO + 2 NC

Control circuit type

AC at 50/60 Hz

[uc] control circuit voltage

500 V AC 50/60 Hz

[ith] conventional free air thermal current

10 A (at 50 °C)

Irms rated making capacity

110 A conforming to IEC 60947

Associated fuse rating

10 A gG conforming to IEC 60947|10 A gG conforming to VDE 0660

[ui] rated insulation voltage

690 V conforming to IEC 60947|750 V conforming to VDE 0110 group C|690 V conforming to BS 5424|600 V conforming to CSA C22.2 No 14

Tightening torque

1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm|1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm

Control circuit voltage limits

drop-out: 0.2...0.75 Uc (at <50 °C)|operational: 0.8...1.15 Uc (at <50 °C)

Operating time

10...20 ms coil de-energisation and NO opening|10...20 ms coil energisation and NO closing|15...25 ms coil de-energisation and NC closing|5...15 ms coil energisation and NC opening

Maximum operating rate

10000 cyc/h

Immunity to microbreaks

2 ms

Inrush power in va

30 VA (at 20 °C)

Hold-in power consumption in va

4.5...4.5 VA (at 20 °C)

Heat dissipation

1.3...1.3 W

Minimum switching voltage

17 V

Minimum switching current

5 mA

Non overlap distance

0.5 mm

Compatibility code

CA2K

Protective treatment

TC conforming to IEC 60068

Operating altitude

2000 m without derating

Flame retardance

V1 conforming to UL 94|requirement 2 conforming to NF F 16-101|requirement 2 conforming to NF F 16-102

Mechanical robustness

vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6|vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6|shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27|shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

4.8 cm

Package 1 width

6.2 cm

Package 1 length

6.6 cm

Package 1 weight

180 g
