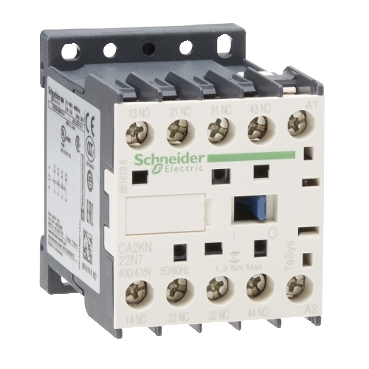

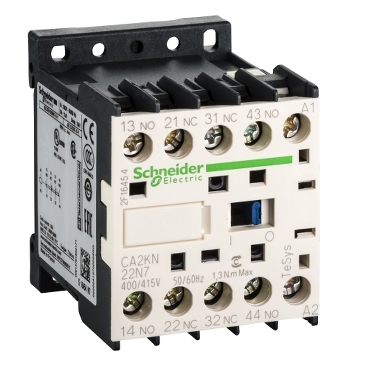

TeSys K Control Relay 2 NO + 2 NC , <= 690 V , 400...415 V AC coil

Item Number: CA2KN22N7

1 PCE 0

Where To Buy

Datasheet

Download

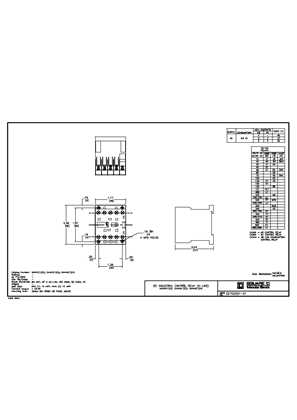

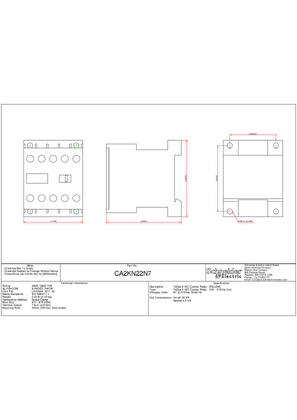

Product Dimensions

Width45 mm

Height58 mm

Depth57 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110481327	-

Specifications

Design

Range of product	TeSys K control relay
Range	TeSys
Product or component type	control relay
Warranty	18 months

Physical

[ue] rated operational voltage	<= 690 V <= 400 Hz
Mounting support	rail plate
Connections - terminals	screw clamp terminals 1 cable(s) 1.5-4 mm²solid screw clamp terminals 2 cable(s) 1.5-4 mm²solid screw clamp terminals 1 cable(s) 0.75-4 mm²flexible with cable end screw clamp terminals 2 cable(s) 0.75-4 mm²flexible without cable end screw clamp terminals 1 cable(s) 0.34-1.5 mm²flexible with cable end screw clamp terminals 2 cable(s) 0.34-1.5 mm²flexible without cable end
Mechanical durability	10 Mcycles
Insulation resistance	> 10 MOhm
Height	58 mm
Width	45 mm
Depth	57 mm
Net weight	0.18 kg
Standards	EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1

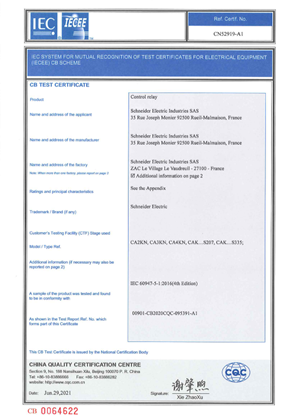

Product certifications	CB Scheme CCC UL CSA EAC CE UKCA
Ip degree of protection	IP2X
Ambient air temperature for operation	-25...50 °C
Ambient air temperature for storage	-50...80 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1503003EN
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
	At least in Europe
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	TeSys CAK
Device short name	CA2K
Contactor application	control circuit
Utilisation category	AC-15 DC-13
Pole contact composition	2 NO + 2 NC
Control circuit type	AC at 50/60 Hz
[uc] control circuit voltage	400...415 V AC 50/60 Hz
[ith] conventional free air thermal current	10 A (at 50 °C)
Irms rated making capacity	110 A conforming to IEC 60947
Associated fuse rating	10 A gG conforming to IEC 60947 10 A gG conforming to VDE 0660
[ui] rated insulation voltage	690 V conforming to IEC 60947 750 V conforming to VDE 0110 group C 690 V conforming to BS 5424 600 V conforming to CSA C22.2 No 14
Tightening torque	1.3 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm 1.3 N.m - on screw clamp terminals - with screwdriver Philips No 26 mm 1.3 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Control circuit voltage limits	drop-out: 0.2...0.75 Uc (at <50 °C) operational: 0.8...1.15 Uc (at <50 °C)
Operating time	10...20 ms coil de-energisation and NO opening 10...20 ms coil energisation and NO closing 15...25 ms coil de-energisation and NC closing 5...15 ms coil energisation and NC opening
Maximum operating rate	10000 cyc/h
Immunity to microbreaks	2 ms
Inrush power in va	30 VA (at 20 °C)
Hold-in power consumption in va	4.5...4.5 VA (at 20 °C)
Heat dissipation	1.3...1.3 W
Minimum switching voltage	17 V
Minimum switching current	5 mA
Non overlap distance	0.5 mm
Compatibility code	CA2K
Protective treatment	TC conforming to IEC 60068
Operating altitude	2000 m without derating
Flame retardance	V1 conforming to UL 94 requirement 2 conforming to NF F 16-101 requirement 2 conforming to NF F 16-102
Mechanical robustness	vibrations contactor open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 vibrations contactor closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 shocks contactor open: 10 Gn for 11 ms conforming to IEC 60068-2-27 shocks contactor closed: 15 Gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.8 cm
Package 1 width	6.2 cm
Package 1 length	6.5 cm
Package 1 weight	178.0 g
Unit type of package 2	S02
Number of units in package 2	50
Package 2 height	15.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	9.428 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	55 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.91401512148607
Carbon footprint of the manufacturing phase [a1 to a3]	0.9 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.35276280880753375
Carbon footprint of the distribution phase [a4]	0.4 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.024250978113109528
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	53.67816344377659
Carbon footprint of the use phase [b2, b3, b4, b6]	54 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.25617272259369844
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	55.225365074777
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes

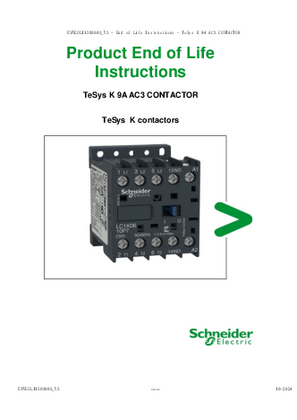

End of life manual availability	ENVEOLI1503003
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
