TeSys D Contactor TeSys Deca,4P(4 NO), AC-1, <= 440 V 125 A - 12V DC coil

Item Number: LP1D80004JW

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width96 mm

Height127 mm

Depth181 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389118355491	-

Specifications

Design

Range	TeSys
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz power circuit: <= 300 V DC
[ie] rated operational current	125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit 55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit
Mechanical durability	4 Mcycles
Electrical durability	0.8 Mcycles 125 A AC-1 at Ue <= 440 V
Connections - terminals	control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end power circuit: connector 1 4-50 mm² - cable stiffness: solid power circuit: connector 2 4-25 mm² - cable stiffness: solid control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end
Mounting support	rail plate
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508

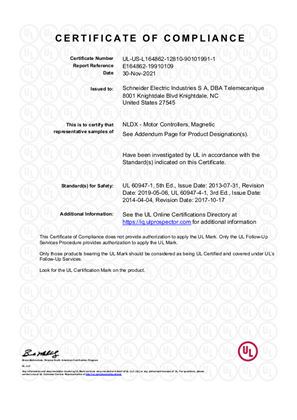

Product certifications	BV CCC CSA DNV EAC GL LROS (Lloyds register of shipping) UL
Ip degree of protection	IP20 front face conforming to IEC 60529
Height	127 mm
Width	96 mm
Depth	181 mm
Net weight	2.685 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Eu rohs directive	Compliant

Others

	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Legacy weee scope	In
Device short name	LP1D
Contactor application	resistive load
Utilisation category	AC-1
Poles description	4P
[uc] control circuit voltage	12 V DC
Compatibility code	LP1D
Pole contact composition	4 NO
Contact compatibility	M4
Protective cover	without
[ith] conventional free air thermal current	125 A (at 60 °C) for power circuit
Irms rated making capacity	1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit
Associated fuse rating	200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole	12.5 W AC-1
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified power circuit: 1000 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	DC wide range
Coil technology	without built-in suppressor module
Control circuit voltage limits	0.1...0.3 Uc (-40-70 °C):drop-out DC 0.75...1.2 Uc (-40-55 °C):operational DC 1...1.2 Uc (55-70 °C):operational DC
Inrush power in w	22 W (at 20 °C)
Hold-in power consumption in w	22 W at 20 °C
Operating time	6...20 ms opening 20...35 ms closing
Time constant	75 ms
Maximum operating rate	3600 cyc/h at 60 °C
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm power circuit: 12 N.m - on connector hexagonal screw head 4 mm
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (3 Gn, 5...300 Hz) shocks contactor open (8 Gn for 11 ms) shocks contactor closed (10 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Sustainable packaging	No
Pvc free	Yes
Pvc free	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
