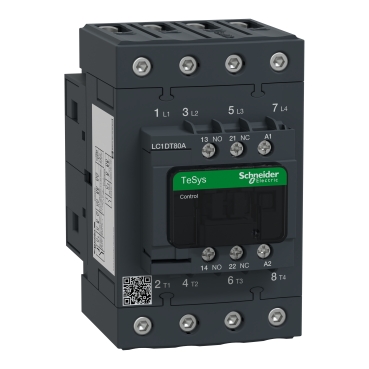

TeSys D Contactor TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 80A, 12V AC 50 Hz coil

Item Number: LC1DT80AJ5

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width70 mm

Height122 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389118330078	-

Specifications

Design

Range

TeSys
TeSys Deca

Range of product

TeSys Deca

Product or component type

contactor

Warranty

18 months

Physical

[ue] rated operational voltage

power circuit: <= 690 V AC 25...400 Hz
power circuit: <= 300 V DC

[ie] rated operational current

80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Mechanical durability

6 Mcycles

Electrical durability

1.4 Mcycles 80 A AC-1 at Ue <= 440 V

Connections - terminals

control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end
power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end
power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end
power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end
power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end
power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end

Insulation resistance

> 10 MOhm for signalling circuit

Mounting support

plate
rail

Standards

CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1

Product certifications

DNV
CSA
RINA
GOST
LROS (Lloyds register of shipping)
BV
GL
UL
CCC

Ip degree of protection

IP20 front face conforming to IEC 60529

Climatic withstand

conforming to IACS E10 exposure to damp heat
conforming to IEC 60947-1 Annex Q category D exposure to damp heat

Height

122 mm

Width

70 mm

Depth

120 mm

Net weight

1.15 kg

Others

Package 1 bare product quantity

Device short name

LC1D

Contactor application

resistive load

Utilisation category

AC-1

Poles description

[uc] control circuit voltage

12 V AC 50 Hz

Compatibility code

LC1D

Pole contact composition

4 NO

Protective cover

with

[ith] conventional free air thermal current

10 A (at 60 °C) for signalling circuit
80 A (at 60 °C) for power circuit

Irms rated making capacity

140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
1000 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1000 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

520 A 40 °C - 10 s for power circuit
900 A 40 °C - 1 s for power circuit
110 A 40 °C - 10 min for power circuit
260 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit

Associated fuse rating

10 A gG for signalling circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 1 for power circuit
125 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.6 mOhm - Ith 80 A 50 Hz for power circuit

Power dissipation per pole

10.2 W AC-1

[ui] rated insulation voltage

power circuit: 600 V CSA certified
power circuit: 600 V UL certified
signalling circuit: 690 V conforming to IEC 60947-1
signalling circuit: 600 V CSA certified
signalling circuit: 600 V UL certified
power circuit: 690 V conforming to IEC 60947-4-1

Overvoltage category

III

Pollution degree

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

AC at 50 Hz

Coil technology

without built-in suppressor module

Control circuit voltage limits

0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
0.3...0.6 Uc (-40-70 °C):drop-out AC 50 Hz
1...1.1 Uc (60-70 °C):operational AC 50 Hz

Inrush power in va

160 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in va

15 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

4...5 W at 50 Hz

Operating time

4...19 ms opening
12...26 ms closing

Tightening torque

control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm
power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm
control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver pozidriv No 2

Auxiliary contact composition

1 NO + 1 NC

Auxiliary contacts type
