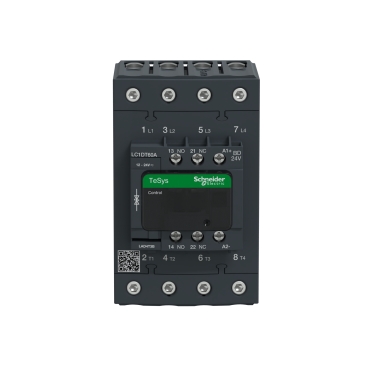

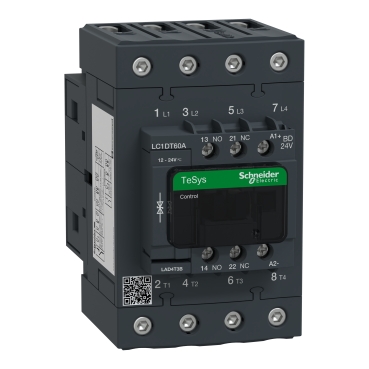

TeSys D Contactor TeSys Deca, 4P(4 NO), AC-1, 0 to 440V, 60A, 24VDC standard coil

Item Number: LC1DT60ABD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width70 mm

Height122 mm

Depth120 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389119409353	-

Specifications

Design

Range	TeSys TeSys Deca
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 690 V AC 25...400 Hz power circuit: <= 300 V DC
[ie] rated operational current	60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Mechanical durability	10 Mcycles
Electrical durability	0.7 Mcycles 60 A AC-1 at Ue <= 440 V
Connections - terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid without cable end power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid without cable end
Insulation resistance	> 10 MOhm for signalling circuit
Mounting support	plate rail
Connections - terminals	EverLink BTR screw connectors
Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1 IEC 60335-1
Product certifications	BV RINA LROS (Lloyds register of shipping) DNV CSA CCC GOST UL GL
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height	122 mm
Width	70 mm
Depth	120 mm
Net weight	1.165 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1503009EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope	In
Substance regulation data deliverable	Yes
Package 3 bare product quantity	112
Average percentage of recycled plastic content	0 %
Life cycle assessment data	Yes
Package 1 bare product quantity	1
Package 2 bare product quantity	7
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Warranty duration(in months) bmecat	18
Device short name	LC1D
Contactor application	resistive load
Utilisation category	AC-1
Poles description	4P
[uc] control circuit voltage	24 V DC
Compatibility code	LC1D
Pole contact composition	4 NO
Protective cover	with
[ith] conventional free air thermal current	10 A (at 60 °C) for signalling circuit 60 A (at 60 °C) for power circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 800 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	800 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	320 A 40 °C - 10 s for power circuit 720 A 40 °C - 1 s for power circuit 72 A 40 °C - 10 min for power circuit 165 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 80 A gG at <= 690 V coordination type 1 for power circuit 80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	1.6 mOhm - Ith 60 A 50 Hz for power circuit
Power dissipation per pole	5.8 W AC-1
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	DC standard
Coil technology	built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits	0.1...0.3 Uc (-40-70 °C):drop-out DC 0.75...1.25 Uc (-40-60 °C):operational DC 1...1.25 Uc (60-70 °C):operational DC
Inrush power in w	19 W (at 20 °C)
Hold-in power consumption in w	7.4...7.4 W at 20 °C
Operating time	50 ±15 % ms closing 16...24 ms opening
Time constant	34 ms
Maximum operating rate	3600 cyc/h at 60 °C
Tightening torque	control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver flat Ø 6 mm control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver Philips No 2 power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm control circuit: 1.7 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2 power circuit: 2.5 N.m - on EverLink BTR screw connectors - with screwdriver pozidriv No 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Contact compatibility	M7
[uc] control circuit voltage	24 V
Rated thermal current (ith)	60 A
Protective treatment	TH conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (4 Gn, 5...300 Hz) shocks contactor closed (15 Gn for 11 ms) shocks contactor open (10 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.900 cm
Package 1 width	13.900 cm
Package 1 length	15.400 cm
Package 1 weight	1.149 kg
Unit type of package 2	S02
Number of units in package 2	7
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	8.355 kg
Unit type of package 3	P06
Number of units in package 3	112
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	141.680 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	112 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	5.7599685810285
Carbon footprint of the manufacturing phase [a1 to a3]	6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.5399718063948152
Carbon footprint of the distribution phase [a4]	0.5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.07033591849925827
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	104.00370493698577
Carbon footprint of the use phase [b2, b3, b4, b6]	104 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	1.6365820971389882
Carbon footprint of the end-of-life phase [c1 to c4]	2 kg CO2 eq.
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	112.01056334004733
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Pvc free	Yes
End of life manual availability	ENVEOLI1503009EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
