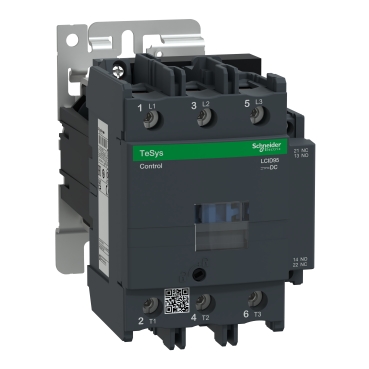

TeSys D Contactor TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 95A, 220V DC wide range coil
Item Number: LC1D95MW
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
[ie] rated operational current
- 95 A (at <60 °C) at <= 440 V AC-3 for power circuit
- 125 A (at <60 °C) at <= 1000 V AC-1 for power circuit
- 95 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability
Electrical durability
- 1.2 Mcycles 95 A AC-3
- 1.3 Mcycles 125 A AC-1
- 1.2 Mcycles 95 A AC-3e
Connections - terminals
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
- power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end
- power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end
- power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end
- power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end
- power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end
- power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
Insulation resistance
Mounting support
- rail
- plate
Standards
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- CSA C22.2 No 14
- UL 60947-4-1
- IEC 60335-2-40:Annex JJ
- UL 60335-2-40:Annex JJ
- IEC 60335-1:Clause 30.2
Product certifications
- IECEE CB Scheme
- CCC
- EAC
- LROS (Lloyds register of shipping)
- RINA
- BV
- DNV-GL
Ip degree of protection
Climatic withstand
Height
Width
Depth
Net weight
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-3
- AC-3e
- AC-4
- AC-1
Poles description
[uc] control circuit voltage
Motor power kw
- 25 kW at 220...230 V AC 50 Hz (AC-3)
- 45 kW at 380...400 V AC 50 Hz (AC-3)
- 45 kW at 415...440 V AC 50 Hz (AC-3)
- 55 kW at 500 V AC 50 Hz (AC-3)
- 45 kW at 660...690 V AC 50 Hz (AC-3)
- 15 kW at 400 V AC 50 Hz (AC-4)
- 25 kW at 220...230 V AC 50 Hz (AC-3e)
- 45 kW at 380...400 V AC 50 Hz (AC-3e)
- 45 kW at 415...440 V AC 50 Hz (AC-3e)
- 55 kW at 500 V AC 50 Hz (AC-3e)
- 45 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp
- 7.5 hp at 120 V AC 60 Hz for 1 phase motors
- 15 hp at 230/240 V AC 60 Hz for 1 phase motors
- 30 hp at 200/208 V AC 60 Hz for 3 phases motors
- 30 hp at 230/240 V AC 60 Hz for 3 phases motors
- 60 hp at 460/480 V AC 60 Hz for 3 phases motors
- 60 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
- 10 A (at 60 °C) for signalling circuit
- 125 A (at 60 °C) for power circuit
Irms rated making capacity
- 1100 A at 440 V AC for power circuit conforming to IEC 60947
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity
[icw] rated short-time withstand current
- 1100 A 40 °C - 1 s for power circuit
- 800 A 40 °C - 10 s for power circuit
- 400 A 40 °C - 1 min for power circuit
- 135 A 40 °C - 10 min for power circuit
- 140 A - 100 ms for signalling circuit
- 120 A - 500 ms for signalling circuit
- 100 A - 1 s for signalling circuit
Associated fuse rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
- 200 A gG at <= 690 V coordination type 1 for power circuit
- 160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
- 12.5 W AC-1
- 7.2 W AC-3
- 7.2 W AC-3e
[ui] rated insulation voltage
- power circuit: 1000 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1.3 Mcycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20 Mcycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.75...1.2 Uc (-40-55 °C):operational DC
- 0.1...0.3 Uc (-40-70 °C):drop-out DC
- 1...1.2 Uc (55-70 °C):operational DC
Inrush power in w
Hold-in power consumption in w
Operating time
- 95...130 ms closing
- 20...35 ms opening
Time constant
Maximum operating rate
Tightening torque
- control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm
- power circuit: 12 N.m - on connector hexagonal screw head 4 mm
- control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Contact compatibility
Protective treatment
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- shocks contactor open (8 Gn for 11 ms)
- vibrations contactor closed (3 Gn, 5...300 Hz)
- shocks contactor closed (10 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Green premium status for reporting
Sustainable packaging
Weee
Pvc free
Pvc free
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
