TeSys D Contactor TeSys Deca, 3P(3NO), AC-3/AC-3e, 440V, 80A, 110V AC 50/60Hz coil

Item Number: LC1D80F7

1 PCE 0

Where To Buy

Datasheet

Download

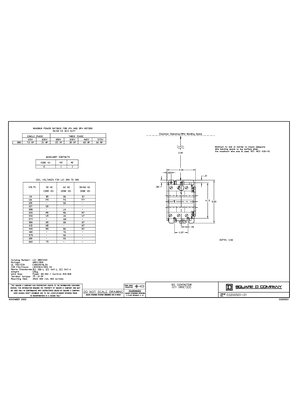

Product Dimensions

Width85 mm

Height127 mm

Depth130 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110440782	-

Specifications

Design

Range	TeSys
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 300 V DC 25...400 Hz power circuit: <= 690 V AC
[ie] rated operational current	125 A (at <60 °C) at <= 1000 V AC AC-1 for power circuit 80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability	4 Mcycles
Electrical durability	0.8 Mcycles 125 A AC-1 at Ue <= 440 V 1.5 Mcycles 80 A AC-3 at Ue <= 440 V 1.5 Mcycles 80 A AC-3e at Ue <= 440 V
Connections - terminals	control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end power circuit: connector 1 4-50 mm² - cable stiffness: flexible without cable end power circuit: connector 2 4-25 mm² - cable stiffness: flexible without cable end power circuit: connector 1 4-50 mm² - cable stiffness: flexible with cable end power circuit: connector 2 4-16 mm² - cable stiffness: flexible with cable end power circuit: connector 1 4-50 mm² - cable stiffness: solid without cable end power circuit: connector 2 4-25 mm² - cable stiffness: solid without cable end
Insulation resistance	> 10 MOhm for signalling circuit
Mounting support	rail plate
Connections - terminals	screw clamp terminals
Standards	EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 CSA C22.2 No 14 UL 60947-4-1 IEC 60335-2-40:Annex JJ UL 60335-2-40:Annex JJ IEC 60335-1:Clause 30.2
Product certifications	CCC UL CB Scheme CSA CE UKCA Marine EAC
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat
Height	127 mm
Width	85 mm
Depth	130 mm
Net weight	1.59 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1102005EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Package 2 bare product quantity	5
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Package 3 bare product quantity	80
Average percentage of recycled plastic content	0 %
Device short name	LC1D
Contactor application	motor control resistive load
Utilisation category	AC-3 AC-3e AC-4 AC-1
Poles description	3P
[uc] control circuit voltage	110 V AC 50/60 Hz
Motor power kw	22 kW at 220...230 V AC 50/60 Hz (AC-3) 37 kW at 380...400 V AC 50/60 Hz (AC-3) 45 kW at 415...440 V AC 50/60 Hz (AC-3) 55 kW at 500 V AC 50/60 Hz (AC-3) 45 kW at 660...690 V AC 50/60 Hz (AC-3) 15 kW at 400 V AC 50/60 Hz (AC-4) 22 kW at 220...230 V AC 50/60 Hz (AC-3e) 37 kW at 380...400 V AC 50/60 Hz (AC-3e) 45 kW at 415...440 V AC 50/60 Hz (AC-3e) 55 kW at 500 V AC 50/60 Hz (AC-3e) 45 kW at 660...690 V AC 50/60 Hz (AC-3e)
Motor power hp	7.5 hp at 120 V AC 50/60 Hz for 1 phase motors 15 hp at 230/240 V AC 50/60 Hz for 1 phase motors 30 hp at 200/208 V AC 50/60 Hz for 3 phases motors 30 hp at 230/240 V AC 50/60 Hz for 3 phases motors 60 hp at 460/480 V AC 50/60 Hz for 3 phases motors 60 hp at 575/600 V AC 50/60 Hz for 3 phases motors
Compatibility code	LC1D
Pole contact composition	3 NO
Protective cover	with
[ith] conventional free air thermal current	10 A (at 60 °C) for signalling circuit 125 A (at 60 °C) for power circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1100 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	640 A 40 °C - 10 s for power circuit 990 A 40 °C - 1 s for power circuit 135 A 40 °C - 10 min for power circuit 320 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit
Associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1 200 A gG at <= 690 V coordination type 1 for power circuit 160 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	0.8 mOhm - Ith 125 A 50 Hz for power circuit
Power dissipation per pole	5.1 W AC-3 12.5 W AC-1 5.1 W AC-3e
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified power circuit: 1000 V conforming to IEC 60947-4-1 signalling circuit: 690 V conforming to IEC 60947-1 signalling circuit: 600 V CSA certified signalling circuit: 600 V UL certified
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	AC at 50/60 Hz standard
Coil technology	without built-in suppressor module
Control circuit voltage limits	0.85...1.1 Uc (-40-55 °C):operational AC 60 Hz 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40-55 °C):operational AC 50 Hz 1...1.1 Uc (55-70 °C):operational AC 50/60 Hz
Inrush power in va	245 VA 60 Hz cos phi 0.75 (at 20 °C) 245 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va	26 VA 60 Hz cos phi 0.3 (at 20 °C) 26 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	6...10 W at 50/60 Hz
Operating time	20...35 ms closing 6...20 ms opening
Maximum operating rate	3600 cyc/h at 60 °C
Tightening torque	control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 power circuit: 12 N.m - on connector - with screwdriver flat Ø 6 to Ø 8 mm power circuit: 12 N.m - on connector hexagonal screw head 4 mm control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Auxiliary contact composition	1 NO + 1 NC
Auxiliary contacts type	type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency	25...400 Hz
Minimum switching voltage	17 V for signalling circuit
Minimum switching current	5 mA for signalling circuit
Non-overlap time	1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact
Contact compatibility	M11
[uc] control circuit voltage	110 V
Maximum motor phase current	80 A
Protective treatment	TH conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) shocks contactor open (8 Gn for 11 ms) vibrations contactor closed (3 Gn, 5...300 Hz) shocks contactor closed (10 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.500 cm
Package 1 width	13.400 cm
Package 1 length	14.200 cm
Package 1 weight	1.558 kg
Unit type of package 2	S02
Number of units in package 2	5
Package 2 height	15.000 cm
Package 2 width	30.000 cm
Package 2 length	40.000 cm
Package 2 weight	8.048 kg
Unit type of package 3	P06
Number of units in package 3	80
Package 3 height	75.000 cm
Package 3 width	60.000 cm
Package 3 length	80.000 cm
Package 3 weight	124.640 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	97 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	10.960713361237987
Carbon footprint of the manufacturing phase [a1 to a3]	11 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.21622581342878092
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.31002666931072853
Carbon footprint of the installation phase [a5]	0.3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	81.20896739130431
Carbon footprint of the use phase [b2, b3, b4, b6]	81 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	4.088997647987764
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	96.78493088326958
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
China rohs label	1
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
