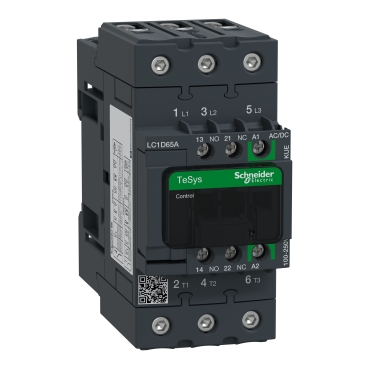

TeSys D Contactor TeSys Deca, 3P(3 NO), AC-3/AC-3e, 0 to 440V, 65A, 100-250VAC/DC coil, EverLink
Item Number: LC1D65AKUE
Specifications
Design
Range
- TeSys
- TeSys Deca
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
[ie] rated operational current
- 80 A (at <60 °C) at <= 440 V AC-1 for power circuit
- 65 A (at <60 °C) at <= 440 V AC-3 for power circuit
- 65 A (at <60 °C) at <= 440 V AC-3e for power circuit
Mechanical durability
Electrical durability
- 1.8 Mcycles 57 A AC-3 at Ue <= 440 V
- 0.5 Mcycles 80 A AC-1 at Ue <= 440 V
- 1.8 Mcycles 57 A AC-3e at Ue <= 440 V
Connections - terminals
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
- power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible without cable end
- power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: flexible with cable end
- power circuit: EverLink BTR screw connectors 1 1-35 mm² - cable stiffness: solid
- power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible without cable end
- power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: flexible with cable end
- power circuit: EverLink BTR screw connectors 2 1-25 mm² - cable stiffness: solid
Insulation resistance
Mounting support
- rail
- plate
Standards
- EN/IEC 60947-4-1
- EN/IEC 60947-5-1
- UL 60947-4-1
- CSA C22.2 No 60947-4-1
- IEC 60335-1
Product certifications
- CCC
- CSA
- EAC
- UL
- KC
- DNV-GL
- LROS (Lloyds register of shipping)
- UKCA
Ip degree of protection
Climatic withstand
- conforming to IACS E10 exposure to damp heat
- conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height
Width
Depth
Net weight
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Package 1 bare product quantity
Package 2 bare product quantity
Substance regulation data deliverable
Life cycle assessment data
Device short name
Contactor application
- motor control
- resistive load
Utilisation category
- AC-1
- AC-3
- AC-3e
Poles description
[uc] control circuit voltage
- 100...250 V AC 50/60 Hz
- 100...250 V DC
Motor power kw
- 18.5 kW at 220...230 V AC 50 Hz (AC-3)
- 30 kW at 380...400 V AC 50 Hz (AC-3)
- 37 kW at 415 V AC 50 Hz (AC-3)
- 37 kW at 440 V AC 50 Hz (AC-3)
- 37 kW at 500 V AC 50 Hz (AC-3)
- 37 kW at 660...690 V AC 50 Hz (AC-3)
- 18.5 kW at 220...230 V AC 50 Hz (AC-3e)
- 30 kW at 380...400 V AC 50 Hz (AC-3e)
- 37 kW at 415 V AC 50 Hz (AC-3e)
- 37 kW at 440 V AC 50 Hz (AC-3e)
- 37 kW at 500 V AC 50 Hz (AC-3e)
- 37 kW at 660...690 V AC 50 Hz (AC-3e)
Motor power hp
- 5 hp at 115 V AC 60 Hz for 1 phase motors
- 10 hp at 230/240 V AC 60 Hz for 1 phase motors
- 20 hp at 200/208 V AC 60 Hz for 3 phases motors
- 20 hp at 230/240 V AC 60 Hz for 3 phases motors
- 40 hp at 460/480 V AC 60 Hz for 3 phases motors
- 50 hp at 575/600 V AC 60 Hz for 3 phases motors
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
- 80 A (at 60 °C) for power circuit
- 10 A (at 60 °C) for signalling circuit
Irms rated making capacity
- 1000 A at 440 V for power circuit conforming to IEC 60947
- 140 A AC for signalling circuit conforming to IEC 60947-5-1
- 250 A DC for signalling circuit conforming to IEC 60947-5-1
Rated breaking capacity
[icw] rated short-time withstand current
- 110 A 40 °C - 10 min for power circuit
- 260 A 40 °C - 1 min for power circuit
- 640 A 40 °C - 10 s for power circuit
- 900 A 40 °C - 1 s for power circuit
- 100 A - 1 s for signalling circuit
- 120 A - 500 ms for signalling circuit
- 140 A - 100 ms for signalling circuit
Associated fuse rating
- 125 A gG at <= 690 V coordination type 1 for power circuit
- 125 A gG at <= 690 V coordination type 2 for power circuit
- 10 A gG for signalling circuit conforming to IEC 60947-5-1
Average impedance
Power dissipation per pole
- 9.6 W AC-1
- 6.3 W AC-3
- 6.3 W AC-3e
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- signalling circuit: 690 V conforming to IEC 60947-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- <= 0.1 Uc (-40-70 °C):drop-out AC/DC
- 0.85...1.1 Uc (-40-60 °C):operational AC/DC
- 1...1.1 Uc (60-70 °C):operational AC/DC
Inrush power in va
Inrush power in w
Hold-in power consumption in va
Hold-in power consumption in w
Heat dissipation
Operating time
- 55...65 ms closing
- 20...120 ms opening (date code >= 17221)
- 20...80 ms opening (date code >= 18011)
Maximum operating rate
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 8 N.m - on EverLink BTR screw connectors - cable 25-35 mm² hexagonal screw head 4 mm
- power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1-25 mm² hexagonal screw head 4 mm
- power circuit: 5 N.m - with screwdriver pozidriv No 2
- control circuit: 1.7 N.m - with screwdriver pozidriv No 2
Auxiliary contact composition
Auxiliary contacts type
- type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
- type mirror contact 1 NC conforming to IEC 60947-4-1
Signalling circuit frequency
Minimum switching voltage
Minimum switching current
Non-overlap time
- 1.5 ms on de-energisation between NC and NO contact
- 1.5 ms on energisation between NC and NO contact
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- vibrations contactor open (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
- shocks contactor open (10 Gn for 11 ms)
- shocks contactor closed (15 Gn for 11 ms)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging made with recycled cardboard
Packaging without single use plastic
Scip number
Green premium status for reporting
Sustainable packaging
Weee
Halogen content performance
Halogen content performance
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Global warming ; total life cycle
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Minimum percentage of recycled plastic content
