TeSys D Contactor Coil LXD1,480V AC 50/60Hz for 9… 38 A Contactor

Home ProductsIndustrialTeSysContactor Coil

TeSys D Contactor Coil LXD1,480V AC 50/60Hz for 9… 38 A Contactor

Item Number: LXD1T7

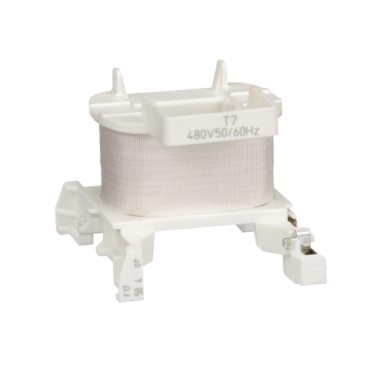

TeSys Deca replacement coil 480V AC 60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

contactor coil

Product compatibility

  • LC1DT20...DT40
  • CAD
  • LC1D09...D38

Warranty

18 months

Physical

Mechanical durability

15 Mcycles

Ambient air temperature for operation

-5...60 °C

Net weight

0.07 kg

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1501004

Circularity profile

ENVEOLI1501004

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

acc

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[uc] control circuit voltage

480 V AC 50/60 Hz

Average resistance

2398 Ohm at 20 °C

Inductance of closed circuit

87 H

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

without built-in suppressor module

Control circuit voltage limits

  • drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
  • operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
  • operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in va

  • 70 VA 60 Hz cos phi 0.75 (at 20 °C)
  • 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in va

  • 7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2...3 W at 50/60 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0 cm

Package 1 width

4.5 cm

Package 1 length

6.4 cm

Package 1 weight

70.0 g

Unit type of package 2

S01

Number of units in package 2

30

Package 2 height

15.0 cm

Package 2 width

15.0 cm

Package 2 length

40.0 cm

Package 2 weight

2.277 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Sustainable packaging

Yes

Pvc free

Yes

Pvc free

Yes

F-gas usage performance

N/A

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Minimum percentage of recycled plastic content

0
Show all specifications

Frequently Asked Questions

What is the replacement AC coil for CAD32 and CAD50 relay?

Hide Show
Issue:
AC coil replacement for CAD32 and CAD50

Product Line:
Relays

Environment:
Tesys CAD Control Relays

Cause:
Product selection

Resolution:
Volt = coil part number
12 = LXD1J7
21 = LXD1Z7
24 = LXD1B7
32 = LXD1C7
36 = LXD1CC7
42 = LXD1D7
48 = LXD1E7
60 = LXD1EE7
100 = LXD1K7
110 = LXD1F7
115 = LXD1FE7
120 = LXD1G7
127 = LXD1FC7
200 = LXD1L7
208 = LXD1LL7
220/230 = LXD1M7
230 595 21 LXD1P7
230/240 = LXD1U7
277 781 30 LXD1W7
380/400 = LXD1Q7
400 = LXD1V7
415 = LXD1N7
440 = LXD1R7
480 = LXD1T7
600 = LXD1X7
690 = LXD1Y7
