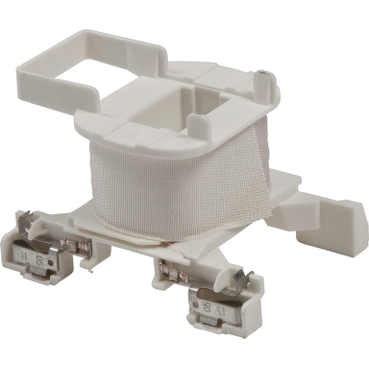

TeSys D Contactor Coil LXD1, 277 V AC 50/60 Hz for 9… 38 A Contactor

Home ProductsIndustrialTeSysContactor Coil

TeSys D Contactor Coil LXD1, 277 V AC 50/60 Hz for 9… 38 A Contactor

Item Number: LXD1W7

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

TeSys Deca

Range

TeSys

Product or component type

contactor coil

Product compatibility

  • LC1DT20...DT40
  • LC1D09...D38
  • CAD

Warranty

18 months

Physical

Mechanical durability

15 Mcycles

Ambient air temperature for operation

-5...60 °C

Net weight

0.07 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1501004

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

No

Device short name

LXD1

Control circuit type

AC at 50/60 Hz

[uc] control circuit voltage

277 V AC 50/60 Hz

Average resistance

800.7 Ohm at 20 °C

Inductance of closed circuit

29 H

Maximum operating rate

3600 cyc/h 60 °C

Coil technology

without built-in suppressor module

Control circuit voltage limits

  • drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
  • operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
  • operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)

Inrush power in va

  • 70 VA 60 Hz cos phi 0.75 (at 20 °C)
  • 70 VA 50 Hz cos phi 0.75 (at 20 °C)

Hold-in power consumption in va

  • 7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
  • 7 VA 50 Hz cos phi 0.3 (at 20 °C)

Heat dissipation

2...3 W at 50/60 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.0 cm

Package 1 width

4.5 cm

Package 1 length

3.5 cm

Package 1 weight

79.0 g

Sustainable packaging

Yes

Pvc free

Yes

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Pvc free

Yes

End of life manual availability

ENVEOLI1501004

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • End of Life Manual

  • Environmental Disclosure

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Deca Contactor 3P 09A AC
ZIP

TeSys Deca Contactor 3P 09A AC

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 339.1 KB
TeSys Deca Contactor 3P 09A AC
ZIP

TeSys Deca Contactor 3P 09A AC

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 628.8 KB
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 China RoHS Declaration
ZIP

LXD1W7 China RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
LXD1W7 EU RoHS Declaration
ZIP

LXD1W7 EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

What is the replacement AC coil for CAD32 and CAD50 relay?

Hide Show
Issue:
AC coil replacement for CAD32 and CAD50

Product Line:
Relays

Environment:
Tesys CAD Control Relays

Cause:
Product selection

Resolution:
Volt = coil part number
12 = LXD1J7
21 = LXD1Z7
24 = LXD1B7
32 = LXD1C7
36 = LXD1CC7
42 = LXD1D7
48 = LXD1E7
60 = LXD1EE7
100 = LXD1K7
110 = LXD1F7
115 = LXD1FE7
120 = LXD1G7
127 = LXD1FC7
200 = LXD1L7
208 = LXD1LL7
220/230 = LXD1M7
230 595 21 LXD1P7
230/240 = LXD1U7
277 781 30 LXD1W7
380/400 = LXD1Q7
400 = LXD1V7
415 = LXD1N7
440 = LXD1R7
480 = LXD1T7
600 = LXD1X7
690 = LXD1Y7
