TeSys D Contactor Coil LXD1, 12V AC 50/60 Hz for 9… 38 A Contactor
Item Number: LXD1J7

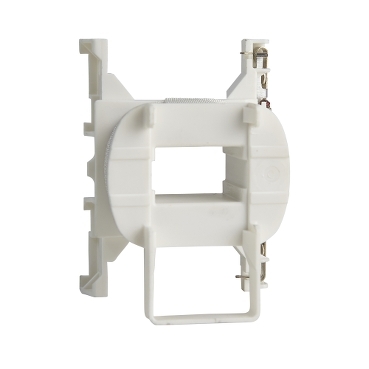

TeSys Deca replacement coil 12V AC 50/60Hz, for TeSys Deca contactors. To be used with 3 and 4-pole contactors LC1D09 to D38 and LC1DT20, DT40. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C
Datasheet
Specifications
Design
Range of product
Range
Product or component type
Product compatibility
- LC1DT20...DT40
- LC1D09...D38
- CAD
Warranty
Physical
Mechanical durability
Ambient air temperature for operation
Net weight
Reach free of svhc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
China rohs regulation
Eu rohs directive
California proposition 65
Others
Average percentage of recycled plastic content
Package 1 bare product quantity
Legacy weee scope
Warranty duration(in months) bmecat
Weee label
Device short name
Control circuit type
[uc] control circuit voltage
Average resistance
Inductance of closed circuit
Maximum operating rate
Coil technology
Control circuit voltage limits
- drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
- operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
- operational: 0.85...1.1 Uc at 60 Hz (at <60 °C)
Inrush power in va
- 70 VA 60 Hz cos phi 0.75 (at 20 °C)
- 70 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va
- 7.5...7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
- 7 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
Take-back
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
China rohs label
Pvc free
End of life manual availability
Take-back
Warranty (in months)
Documents & downloads
-
All
-
Technical Data Catalogues
-
Environmental Disclosure
-
End of Life Manual
-
Declaration of Conformity (Sustainability)
LXD1J7 EU RoHS Directive
