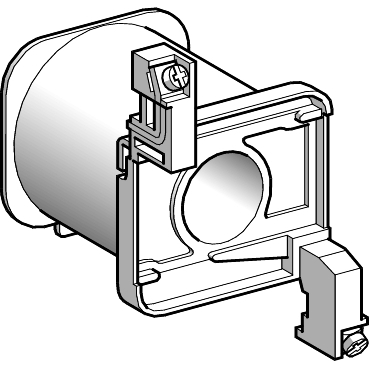

TeSys D Contactor Coil LX4D7, 36 V DC wide range for 80 A Contactor
Item Number: LX4D7CW
Datasheet
Close
Specifications
Design
Range of product
TeSys Deca
Range
TeSys
Product or component type
contactor coil
Product compatibility
LC1D80
Warranty
18 months
Physical
Mechanical durability
10 Mcycles
Ambient air temperature for operation
-5...60 °C
Net weight
0.68 kg
Reach free of svhc
Yes
Eu rohs directive
Compliant
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
California proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Others
Package 1 bare product quantity
1
Device short name
LX4D7
Control circuit type
DC wide range
[uc] control circuit voltage
36 V DC
Average resistance
51.9 Ohm at 20 °C
Inductance of closed circuit
4.18 H
Maximum operating rate
3600 cyc/h 60 °C
Coil technology
without built-in suppressor module
Control circuit voltage limits
- drop-out: 0.1...0.3 Uc (at <55 °C)
- operational: 0.75...1.2 Uc (at <55 °C)
Time constant
75 ms
Inrush power in w
22 W (at 20 °C)
Hold-in power consumption in w
22 W at 20 °C
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9 cm
Package 1 width
11.5 cm
Package 1 length
14.5 cm
Package 1 weight
680 g
Documents & downloads
hide showFilter items
-
All
-
Technical Data Catalogues
