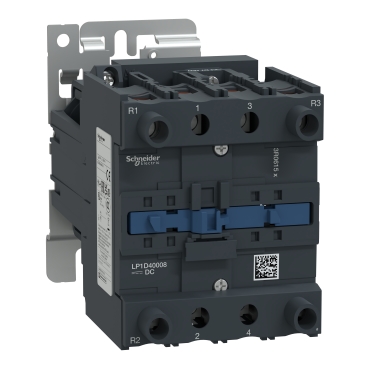

TeSys D Deca Contactor 4P(2NO+2NC),AC-1,<=440V 60A,220V DC wide coil
Item Number: LP1D40008MW
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
[ie] rated operational current
Mechanical durability
Electrical durability
Connections - terminals
- power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 2.5-25 mm² - cable stiffness: solid
- power circuit: screw clamp terminals 2 2.5-16 mm² - cable stiffness: solid
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid
Mounting support
- rail
- plate
Connections - terminals
Standards
- CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 60947-4-1
Product certifications
- UL
- CSA
- CCC
- EAC
- UKCA
- CB
- DNV-GL
- RINA
- BV
- LROS (Lloyds register of shipping)
Ip degree of protection
Height
Width
Depth
Net weight
Reach free of svhc
Toxic heavy metal free
Mercury free
Rohs exemption information
Environmental disclosure
Eu rohs directive
Reach regulation
China rohs regulation
Others
Life cycle assessment data
Substance regulation data deliverable
Legacy weee scope
Package 1 bare product quantity
Average percentage of recycled plastic content
Weee label
Device short name
Contactor application
Utilisation category
Poles description
[uc] control circuit voltage
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
Irms rated making capacity
Rated breaking capacity
[icw] rated short-time withstand current
- 72 A 40 °C - 10 min for power circuit
- 165 A 40 °C - 1 min for power circuit
- 320 A 40 °C - 10 s for power circuit
- 720 A 40 °C - 1 s for power circuit
Associated fuse rating
- 80 A gG at <= 690 V coordination type 1 for power circuit
- 80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
[ui] rated insulation voltage
- power circuit: 690 V conforming to IEC 60947-4-1
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.1...0.3 Uc (-40-55 °C):drop-out DC
- 0.85...1.1 Uc (-40-55 °C):operational DC
Inrush power in w
Hold-in power consumption in w
Operating time
- 4...19 ms opening
- 12...26 ms closing
Time constant
Maximum operating rate
Tightening torque
- power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Contact compatibility
Rated thermal current (ith)
[uc] control circuit voltage
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- shocks contactor open (8 Gn for 11 ms)
- shocks contactor closed (10 Gn for 11 ms)
- vibrations contactor opened (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Green premium status for reporting
Total lifecycle carbon footprint
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the manufacturing phase [a1 to a3]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the distribution phase [a4]
Carbon footprint of the installation phase [a5]
Carbon footprint of the installation phase [a5]
Carbon footprint of the use phase [b2, b3, b4, b6]
Carbon footprint of the use phase [b2, b3, b4, b6]
Sustainable packaging
Carbon footprint of the end-of-life phase [c1 to c4]
Carbon footprint of the end-of-life phase [c1 to c4]
Pvc free
F-gas free
Take-back
Product contributes to saved and avoided emissions
Removable battery
Total lifecycle carbon footprint
Average percentage of recycled metal content
Packaging made with recycled cardboard
Packaging without single use plastic
Pvc free
End of life manual availability
Take-back
Weee label
Warranty (in months)
