TeSys D Contactor 4P(2NO+2NC),AC-1 <=440V 60A,24V AC 50/60Hz coil
Item Number: LC1D40008B7
Specifications
Design
Range
Range of product
Product or component type
Warranty
Physical
[ue] rated operational voltage
- power circuit: <= 690 V AC 25...400 Hz
- power circuit: <= 300 V DC
[ie] rated operational current
Mechanical durability
Electrical durability
Connections - terminals
- control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
- control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end
- control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable end
- power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable end
- power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid without cable end
- power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: solid without cable end
Mounting support
- rail
- plate
Standards
- CSA C22.2 No 14
- EN 60947-4-1
- EN 60947-5-1
- IEC 60947-4-1
- IEC 60947-5-1
- UL 508
Product certifications
- DNV
- LROS (Lloyds register of shipping)
- GL
- UL
- BV
- CCC
- CSA
- GOST
- RINA
Ip degree of protection
Climatic withstand

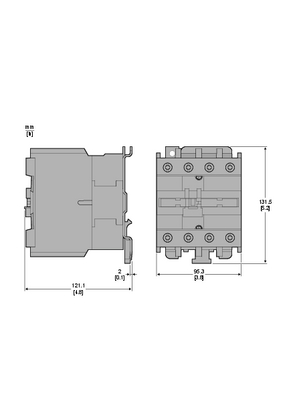

Height
Width
Depth
Net weight
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 2 bare product quantity
Package 1 bare product quantity
Device short name
Contactor application
Utilisation category
Poles description
[uc] control circuit voltage
Compatibility code
Pole contact composition
Protective cover
[ith] conventional free air thermal current
Irms rated making capacity
Rated breaking capacity
[icw] rated short-time withstand current
- 320 A 40 °C - 10 s for power circuit
- 720 A 40 °C - 1 s for power circuit
- 72 A 40 °C - 10 min for power circuit
- 165 A 40 °C - 1 min for power circuit
Associated fuse rating
- 80 A gG at <= 690 V coordination type 1 for power circuit
- 80 A gG at <= 690 V coordination type 2 for power circuit
Average impedance
Power dissipation per pole
[ui] rated insulation voltage
- power circuit: 600 V CSA certified
- power circuit: 600 V UL certified
- power circuit: 690 V conforming to IEC 60947-4-1
Overvoltage category
Pollution degree
[uimp] rated impulse withstand voltage
Safety reliability level
- B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type
Coil technology
Control circuit voltage limits
- 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
- 0.8...1.1 Uc (-40-60 °C):operational AC 50 Hz
- 0.85...1.1 Uc (-40-60 °C):operational AC 60 Hz
- 1...1.1 Uc (60-70 °C):operational AC 50/60 Hz
Inrush power in va
- 140 VA 60 Hz cos phi 0.75 (at 20 °C)
- 160 VA 50 Hz cos phi 0.75 (at 20 °C)
Hold-in power consumption in va
- 13 VA 60 Hz cos phi 0.3 (at 20 °C)
- 15 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation
Operating time
- 4...19 ms opening
- 12...26 ms closing
Maximum operating rate
Tightening torque
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
- power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm
- power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm
- control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver pozidriv No 2
Contact compatibility
Protective treatment
Permissible ambient air temperature around the device
- -40...60 °C
- 60...70 °C with derating
Operating altitude
Fire resistance
Flame retardance
Mechanical robustness
- shocks contactor open (8 Gn for 11 ms)
- shocks contactor closed (10 Gn for 11 ms)
- vibrations contactor opened (2 Gn, 5...300 Hz)
- vibrations contactor closed (4 Gn, 5...300 Hz)
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Green premium status for reporting
Sustainable packaging
Weee
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
