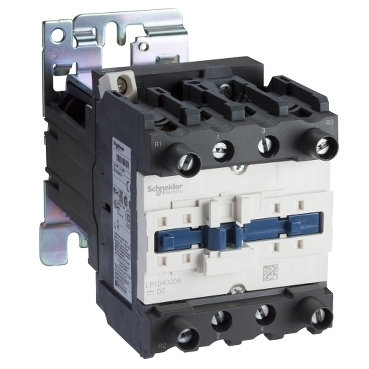

TeSys D Contactor 4P(2 NO + 2 NC), AC-1, <= 440 V 80 A, 220 V DC coil

Item Number: LP1D65008MW

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width85 mm

Height icon

Height127 mm

Depth icon

Depth182 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Range of product

TeSys Deca

Product or component type

contactor

Warranty

18 months

Physical

[ue] rated operational voltage

  • power circuit: <= 690 V AC 25...400 Hz
  • power circuit: <= 300 V DC

[ie] rated operational current

80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

Mechanical durability

6 Mcycles

Electrical durability

1.4 Mcycles 80 A AC-1 at Ue <= 440 V

Connections - terminals

  • power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible without cable end
  • power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible without cable end
  • power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: flexible with cable end
  • power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: flexible with cable end
  • power circuit: screw clamp terminals 1 1-35 mm² - cable stiffness: solid
  • power circuit: screw clamp terminals 2 1-25 mm² - cable stiffness: solid
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
  • control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid
  • control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid

Mounting support

  • rail
  • plate

Standards

  • CSA C22.2 No 14
  • EN 60947-4-1
  • EN 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-5-1
  • UL 508

Product certifications

  • BV
  • CCC
  • CSA
  • DNV
  • EAC
  • GL
  • LROS (Lloyds register of shipping)
  • UL

Ip degree of protection

IP20 front face conforming to IEC 60529

Height

127 mm

Width

85 mm

Depth

182 mm

Net weight

2.22 kg

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1503009EN

Circularity profile

ENVEOLI1503009EN

Others

Device short name

LP1D

Contactor application

resistive load

Utilisation category

AC-1

Poles description

4P

[uc] control circuit voltage

220 V DC

Compatibility code

LP1D

Pole contact composition

2 NO + 2 NC

Protective cover

without

[ith] conventional free air thermal current

80 A (at 60 °C) for power circuit

Irms rated making capacity

1000 A at 440 V for power circuit conforming to IEC 60947

Rated breaking capacity

1000 A at 440 V for power circuit conforming to IEC 60947

[icw] rated short-time withstand current

  • 110 A 40 °C - 10 min for power circuit
  • 260 A 40 °C - 1 min for power circuit
  • 520 A 40 °C - 10 s for power circuit
  • 900 A 40 °C - 1 s for power circuit

Associated fuse rating

  • 125 A gG at <= 690 V coordination type 1 for power circuit
  • 125 A gG at <= 690 V coordination type 2 for power circuit

Average impedance

1.5 mOhm - Ith 80 A 50 Hz for power circuit

Power dissipation per pole

9.6 W AC-1

[ui] rated insulation voltage

  • power circuit: 690 V conforming to IEC 60947-4-1
  • power circuit: 600 V CSA certified
  • power circuit: 600 V UL certified

Overvoltage category

III

Pollution degree

3

[uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947

Safety reliability level

  • B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
  • B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

Control circuit type

DC wide range

Coil technology

built-in bidirectional peak limiting diode suppressor

Control circuit voltage limits

  • 0.1...0.3 Uc (-40-70 °C):drop-out DC
  • 0.75...1.2 Uc (-40-55 °C):operational DC
  • 1...1.2 Uc (55-70 °C):operational DC

Inrush power in w

22 W (at 20 °C)

Hold-in power consumption in w

22 W at 20 °C

Operating time

  • 4...19 ms opening
  • 12...26 ms closing

Time constant

75 ms

Tightening torque

  • power circuit: 8 N.m - on screw clamp terminals - cable 25-35 mm² hexagonal screw head 4 mm
  • control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
  • control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
  • power circuit: 5 N.m - on screw clamp terminals - cable 1-25 mm² hexagonal screw head 4 mm

Contact compatibility

M3

Permissible ambient air temperature around the device

  • -40...60 °C
  • 60...70 °C with derating

Operating altitude

0...3000 m

Fire resistance

850 °C conforming to IEC 60695-2-1

Flame retardance

V1 conforming to UL 94

Mechanical robustness

  • shocks contactor open (8 Gn for 11 ms)
  • shocks contactor closed (10 Gn for 11 ms)
  • vibrations contactor opened (2 Gn, 5...300 Hz)
  • vibrations contactor closed (3 Gn, 5...300 Hz)

Unit type of package 1

PCE

Number of units in package 1

1

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Pvc free

Yes

Pvc free

Yes
