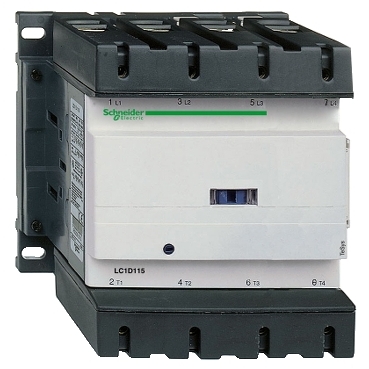

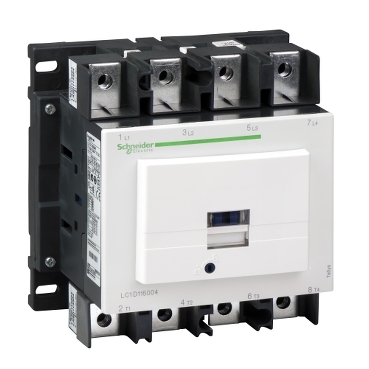

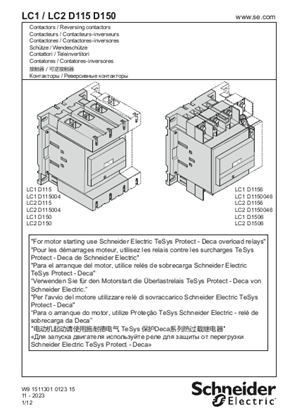

TeSys D Contactor 4P (4NO), AC-1 <=440V 200 A, 24V AC 50/60 Hz coil, lugs/bars terminals

Item Number: LC1D1150046B7

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width155 mm

Height158 mm

Depth115 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	CAR	3389110126723	-

Specifications

Design

Range	TeSys
Range of product	TeSys Deca
Product or component type	contactor
Warranty	18 months

Physical

[ue] rated operational voltage	power circuit: <= 1000 V AC 25...400 Hz power circuit: <= 460 V DC
[ie] rated operational current	200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
Mechanical durability	8 Mcycles
Electrical durability	0.8 Mcycles 200 A AC-1 at Ue <= 440 V
Connections - terminals	control circuit: lugs-ring terminals - external diameter: 8 mm power circuit: lugs-ring terminals - external diameter: 25 mm power circuit: bars 1 - busbar cross section: 5 x 25 mm
Mounting support	rail plate

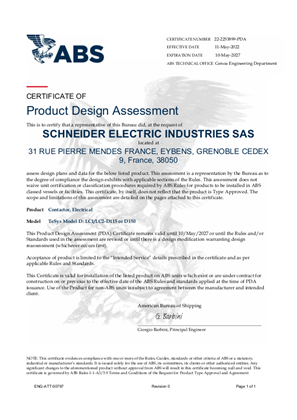

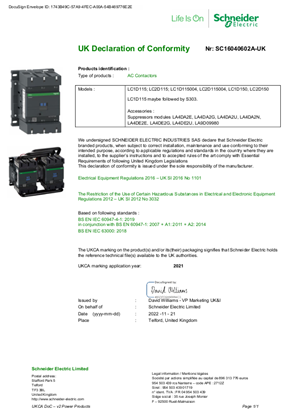

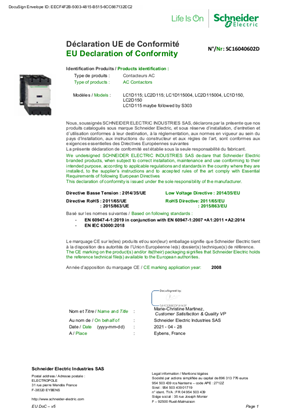

Standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508

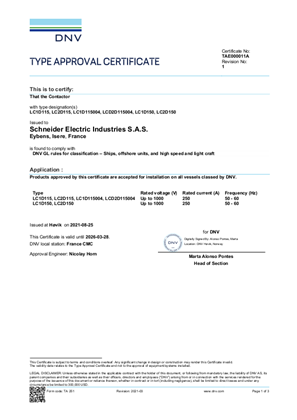

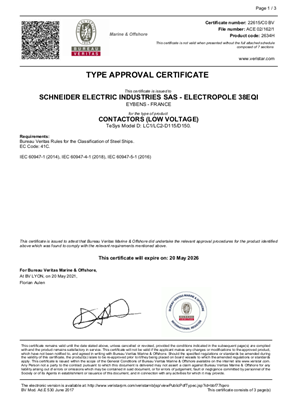

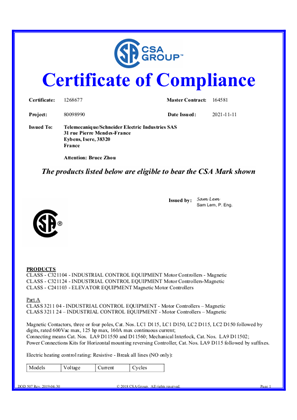

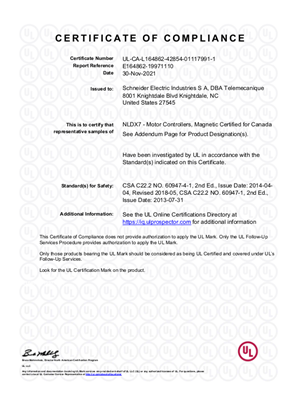

Product certifications	GL GOST CSA CCC UL DNV LROS (Lloyds register of shipping) RINA BV
Ip degree of protection	IP20 front face conforming to IEC 60529
Climatic withstand	conforming to IACS E10 exposure to damp heat conforming to IEC 60947-1 Annex Q category D exposure to damp heat
Height	158 mm
Width	155 mm
Depth	115 mm
Net weight	2.86 kg
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP060301EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LC1D
Contactor application	resistive load
Utilisation category	AC-1 AC-3 AC-3e AC-4
Poles description	4P
[uc] control circuit voltage	24 V AC 50/60 Hz
Compatibility code	LC1D
Pole contact composition	4 NO
Contact compatibility	M14
Protective cover	with
[ith] conventional free air thermal current	200 A (at 60 °C) for power circuit
Irms rated making capacity	1260 A at 440 V for power circuit conforming to IEC 60947
Rated breaking capacity	1100 A at 440 V for power circuit conforming to IEC 60947
[icw] rated short-time withstand current	250 A 40 °C - 10 min for power circuit 550 A 40 °C - 1 min for power circuit 950 A 40 °C - 10 s for power circuit 1100 A 40 °C - 1 s for power circuit
Associated fuse rating	250 A gG at <= 690 V coordination type 1 for power circuit 200 A gG at <= 690 V coordination type 2 for power circuit
Average impedance	0.6 mOhm - Ith 200 A 50 Hz for power circuit
Power dissipation per pole	24 W AC-1
[ui] rated insulation voltage	power circuit: 600 V CSA certified power circuit: 600 V UL certified power circuit: 1000 V conforming to IEC 60947-4-1
Overvoltage category	III
Pollution degree	3
[uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
Safety reliability level	B10d = 684932 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 10000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
Control circuit type	AC at 50/60 Hz
Coil technology	built-in bidirectional peak limiting diode suppressor
Control circuit voltage limits	0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz 0.8...1.15 Uc (-40-55 °C):operational AC 50/60 Hz 1...1.15 Uc (55-70 °C):operational AC 50/60 Hz
Inrush power in va	280...350 VA 60 Hz cos phi 0.8 (at 20 °C) 280...350 VA 50 Hz cos phi 0.8 (at 20 °C)
Hold-in power consumption in va	2...18 VA 60 Hz cos phi 0.3 (at 20 °C) 2...18 VA 50 Hz cos phi 0.3 (at 20 °C)
Heat dissipation	3...8 W at 50/60 Hz
Operating time	6...20 ms opening 20...50 ms closing
Tightening torque	control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver flat Ø 6 mm M3.5 control circuit: 1.2 N.m - on lugs-ring terminals - with screwdriver Philips No 2 M3.5 power circuit: 12 N.m - on lugs-ring terminals hexagonal screw head 13 mm M8 power circuit: 12 N.m - on bars hexagonal screw head 13 mm M8
Protective treatment	TH conforming to IEC 60068-2-30
Permissible ambient air temperature around the device	-40...60 °C 60...70 °C with derating
Operating altitude	0...3000 m
Fire resistance	850 °C conforming to IEC 60695-2-1
Flame retardance	V1 conforming to UL 94
Mechanical robustness	vibrations contactor open (2 Gn, 5...300 Hz) vibrations contactor closed (4 Gn, 5...300 Hz) shocks contactor closed (15 Gn for 11 ms) shocks contactor open (6 Gn for 11 ms)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	16.8 cm
Package 1 width	21.2 cm
Package 1 length	18.5 cm
Package 1 weight	2.37 kg
Sustainable packaging	No
Pvc free	Yes
Pvc free	Yes
End of life manual availability	ENVEOLI100405EN
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
