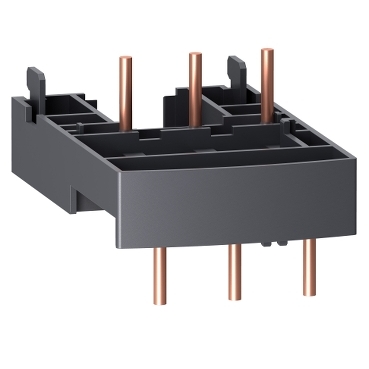

TeSys GV2 Combination Blocks with Contactor LC1D09...D38

Item Number: GV2AF3

1 PCE 0

TeSys GV accessory, combination block for motor starter assembly. For the connection between a motor circuit breaker GV2 or a fuse carrier LS1D32 and contactor LC1D09-D38. To be used when the assembly is mounted directly on DIN rails. Sold in lots of 10 units.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110569063	-
10	CAR	13389110569060	-

Specifications

Design

Range of product	TeSys GV2 TeSys Deca
Range	Linergy
Product or component type	combination block
Product compatibility	LC1D09...D38

Physical

Range compatibility	TeSys GV2 TeSys Deca
[ie] rated operational current	32 A
Net weight	0.016 kg
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2207006EN
Eu rohs directive	Compliant

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	10
Package 3 bare product quantity	140
Average percentage of recycled plastic content	0 %
Package 4 bare product quantity	1120
	At least in Europe
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	FT
Device short name	GV2AF
Accessory / separate part category	connection accessory
Poles description	3P
Compatibility code	GV2AF
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.500 cm
Package 1 width	10.000 cm
Package 1 length	5.000 cm
Package 1 weight	22.000 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	9.500 cm
Package 2 width	10.000 cm
Package 2 length	15.200 cm
Package 2 weight	269.000 g
Unit type of package 3	S03
Number of units in package 3	140
Package 3 height	30.000 cm
Package 3 width	30.000 cm
Package 3 length	40.000 cm
Package 3 weight	4.196 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	Yes
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pop declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=GV2AF3_POP_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Pop directive	No POPs
End of life manual availability	ENVEOLI1503003
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Data Bulletin
Installation Instruction
Environmental Disclosure
End of Life Manual
Technical illustration
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys GV2 Combination Blocks with Contactor LC1D09...D38

Item Number: GV2AF3

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Data Bulletin

Installation Instruction

Environmental Disclosure

End of Life Manual

Technical illustration

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

Combination block TeSys between circuit breaker and contactor - 3D CAD

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Linergy - Distribution and Connection Systems - English

Motor Control Solutions for the North American Market Data Bulletin

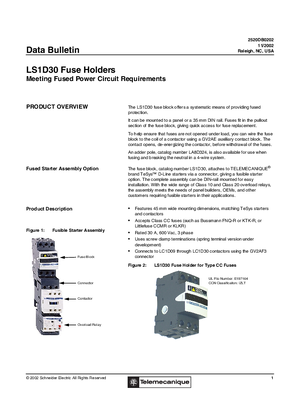

LS1D30 Fuse Holders Data Bulletin
