TeSys GV2 Auxiliary Contact Block TeSys Deca,2NO,front mounting,for GV2
Item Number: GVAE20
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Specifications
Design
Range
- TeSys
- TeSys Deca
Product or component type
Product compatibility
- GV2L
- GV3P
- GV2ME
- LS1D32
- GV3L
- GV2RT
- GV2P
- GV2LE
Warranty
Physical
Quantity per set
[ue] rated operational voltage
- 24...240 V AC
- 24...60 V DC
Mechanical durability
Protection type
- gG fuse 10 A
- GB2CB06 circuit breaker 10 A
Height
Width
Depth
Net weight
Environmental characteristic
Product certifications
Reach regulation
Reach free of svhc
Eu rohs directive
Toxic heavy metal free
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
California proposition 65
Others
Life cycle assessment data
Substance regulation data deliverable
Package 1 bare product quantity
Device short name
Mounting location
Pole contact composition
[ui] rated insulation voltage
- 300 V conforming to UL 508
- 300 V conforming to CSA C22.2 No 14
- 250 V conforming to IEC 60947-1
[ith] conventional free air thermal current
Minimum switching current
Minimum switching voltage
Rated operational power in va
- 120 VA at 110-120 V AC-15 - electrical durability: 100000 cycles
- 120 VA at 230-240 V AC-15 - electrical durability: 100000 cycles
- 48 VA at 24-24 V AC-15 - electrical durability: 100000 cycles
- 60 VA at 48-48 V AC-15 - electrical durability: 100000 cycles
Rated operational power in w
- 15 W at 48 V DC-13 - electrical durability: 100000 cycles
- 24 W at 24 V DC-13 - electrical durability: 100000 cycles
- 9 W at 60 V DC-13 - electrical durability: 100000 cycles
Tightening torque
Compatibility code
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Unit type of package 3
Number of units in package 3
Package 3 height
Package 3 width
Package 3 length
Package 3 weight
Packaging without single use plastic
Packaging made with recycled cardboard
Green premium status for reporting
Weee
F-gas usage performance
Take-back
Take-back
Product contributes to saved and avoided emissions
Removable battery
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
End of Life Manual
-
Environmental Disclosure
-
Installation Instruction
-
Technical illustration
-
Technical Drawing
-
Certificates (MSDS)
-
Declaration of Conformity
Contact blocks for circuit breaker Dimensions
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Contact blocks for circuit breaker Dimensions
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
Add-on Instantaneous contact front contact - Mounting and fixation - Technical drawing
VERSION
1.0
DATE
03 Mar 2022
REVISION
1.0
CB Certificate_TeSys GV_GVAE_SEMW
VERSION
1.0
DATE
12 May 2025
REVISION
1.0
CCC Certificate_TeSys GV_GVAE_SEMW
VERSION
1.0
DATE
12 May 2025
REVISION
1.0
UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
VERSION
1.0
DATE
21 Apr 2025
REVISION
1.0

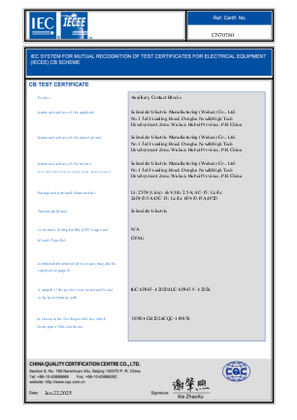

CB_Certificate_TeSys GV_GVAE
VERSION
1.0
DATE
31 Mar 2025
REVISION
1.0
CCC Certificate_TeSys GV_GVAE
VERSION
1.0
DATE
31 Mar 2025
REVISION
1.0
Marine Type Approval Certificate_TeSys GV_GV2L&GV2ME&GV2P&GV2RT
VERSION
1.0
DATE
12 Nov 2024
REVISION
1.0
BV Type approval certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
15 Sep 2024
REVISION
1.0
UL_Certificate_TeSys GV2ME&GV2RT&GV2P&GV2L&GV2LE
VERSION
1.0
DATE
14 Sep 2024
REVISION
1.0
CSA Certificate_TeSys GV2ME&GV2RT&GV2P&GV2MC&GV2MP and GV2P Type E & GV2P combined with LC1D09-38 type F
VERSION
1.0
DATE
29 Feb 2024
REVISION
1.0
Frequently Asked Questions
Can GVAE1, GVAE11 or GVAE20 be used with GV3 starters?
Hide ShowAre the front mount auxiliary contacts GVAE1, GVEA11 and GVAE20 be used for GV3M devices?
Product Line:
Tesys GV Manual Starter and Protectors
Environment:
TeSys GV, GVA, GV2, GV3P
Resolution:
These auxiliary contacts can only be used with the rotary handled GV3P devices. They cannot be applied with the pushbutton GV3M devices.
What is the IP rating of GVAE20? Would the IP rating of GV2P circuit breaker (IP20) get affected by the addition of Aux contact GVAE20?
Hide ShowThe IP rating of GV2* with GVAE20 is then IP20. It would not get affected by the addition of the Auxiliary
