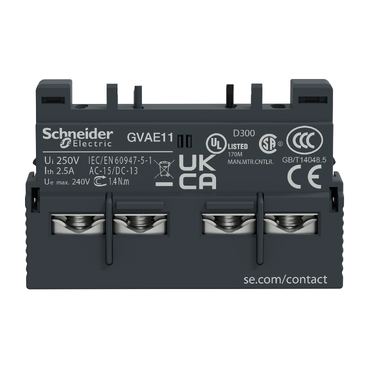

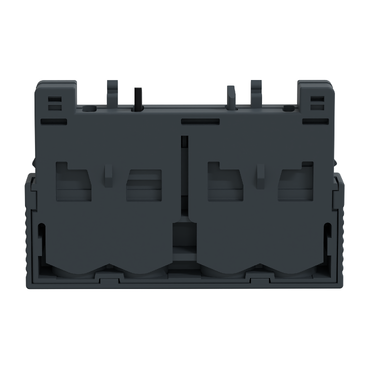

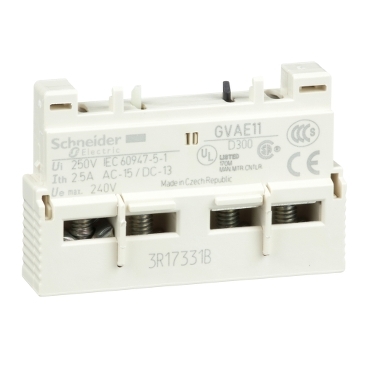

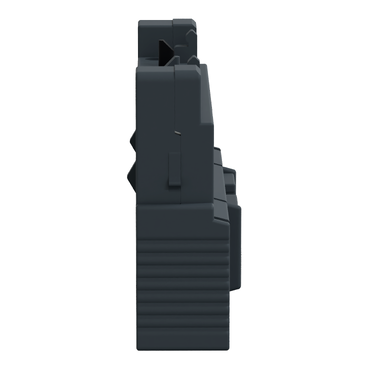

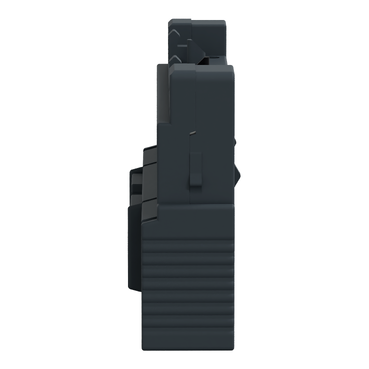

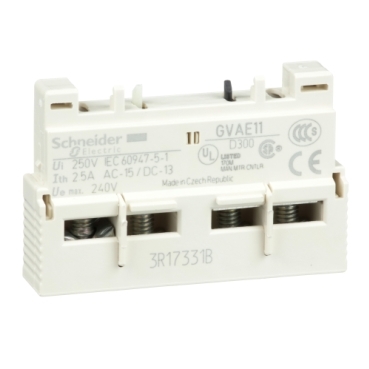

TeSys GV2 Auxiliary Contact Block TeSys Deca,1NO+1NC,front mounting,for GV2
Item Number: GVAE11
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO+1NC instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC),
Specifications
Design
| Range |
|
|---|---|
| Product or component type | auxiliary contact block |
| Product compatibility |
|
| Warranty | 18 months |
Physical
| Quantity per set | set of 10 |
|---|---|
| [ue] rated operational voltage |
|
| Mechanical durability | 100000 cycles |
| Protection type |
|
| Height | 11 mm |
| Width | 45 mm |
| Depth | 29 mm |
| Net weight | 0.02 kg |
| Environmental characteristic | normal environment |
| Standards |
|
| Product certifications |
|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2207006EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
Environmental Disclosure
-
End of Life Manual
-
Technical illustration
-
Technical Drawing
-
Certificates (MSDS)
-

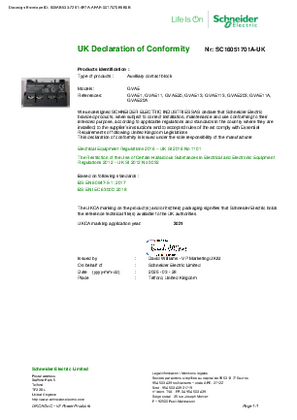

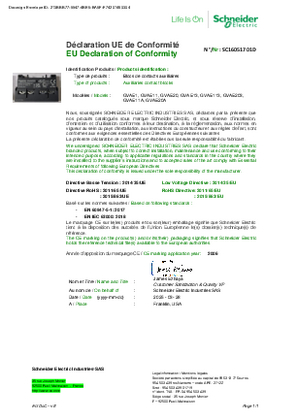

Declaration of Conformity
-
Declaration of Conformity (Sustainability)

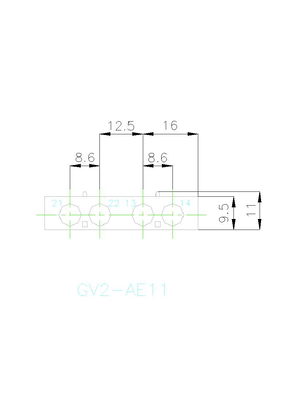

Add on Instantaneous contact front contact Dimensions
