TeSys GV2 Auxiliary contact block for motor circuit breakers, 2A/240V AC, 1A/60V DC

Home ProductsIndustrialTeSysAuxiliary contact block

TeSys GV2 Auxiliary contact block for motor circuit breakers, 2A/240V AC, 1A/60V DC

Item Number: GVAM11

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1C/O contact for short circuit signaling. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC),

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width9.3 mm

Height icon

Height89 mm

Depth icon

Depth66 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

  • TeSys
  • TeSys Deca

Product or component type

auxiliary contact block

Product compatibility

  • GV2L
  • GV2ME
  • GV2RT
  • GV3L
  • GV2P
  • GV3P
  • GV2LE

Warranty

18 months

Physical

[ue] rated operational voltage

  • 24...240 V AC
  • 24...60 V DC

Mechanical durability

100000 cycles

Protection type

  • GB2CB... circuit breaker
  • gG fuse 10 A

Height

89 mm

Width

9.3 mm

Depth

66 mm

Net weight

0.055 kg

Environmental characteristic

normal environment

Product certifications

UKCA

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2207006EN

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

China rohs regulation

Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

25

Package 3 bare product quantity

800

Average percentage of recycled plastic content

0 %

At least in Europe

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

GVAM

Mounting location

left side

Auxiliary contacts operation

short-circuit signal 1 C/O

Pole contact composition

1 C/O

[ui] rated insulation voltage

  • 690 V conforming to IEC 60947-1
  • 300 V conforming to UL 508
  • 300 V conforming to CSA C22.2 No 14

[ith] conventional free air thermal current

2.5 A for fault signalling

Minimum switching current

5 mA

Minimum switching voltage

17 V

Rated operational power in va

  • 36 VA at 24-24 V AC-14 - electrical durability: 1000 cycles at 1.5 A
  • 48 VA at 48-48 V AC-14 - electrical durability: 1000 cycles at 1 A
  • 72 VA at 110-127 V AC-14 - electrical durability: 1000 cycles at 0.5 A
  • 72 VA at 230-240 V AC-14 - electrical durability: 1000 cycles at 0.3 A

Rated operational power in w

  • 120 W at 240 V DC-13 - electrical durability: 100000 cycles
  • 140 W at 110 V DC-13 - electrical durability: 100000 cycles
  • 140 W at 24 V DC-13 - electrical durability: 100000 cycles
  • 180 W at 60 V DC-13 - electrical durability: 100000 cycles
  • 240 W at 48 V DC-13 - electrical durability: 100000 cycles
  • 15 W at 48 V DC-13 - electrical durability: 1000 cycles
  • 24 W at 24 V DC-13 - electrical durability: 1000 cycles
  • 9 W at 60 V DC-13 - electrical durability: 1000 cycles

Compatibility code

GVAM

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

1.5 cm

Package 1 width

13 cm

Package 1 length

15 cm

Package 1 weight

39 g

Unit type of package 2

S01

Number of units in package 2

25

Package 2 height

15 cm

Package 2 width

15 cm

Package 2 length

40 cm

Package 2 weight

1.17 kg

Unit type of package 3

P06

Number of units in package 3

800

Package 3 height

75 cm

Package 3 width

60 cm

Package 3 length

80 cm

Package 3 weight

47.44 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0.4 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.2692288254132501

Carbon footprint of the manufacturing phase [a1 to a3]

0.3 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.012967042303320249

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.0034069806388959695

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0025283999999999997

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.09669577762207152

Carbon footprint of the end-of-life phase [c1 to c4]

0.1 kg CO2 eq.

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.3848270259775378

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

China rohs label

1

End of life manual availability

ENVEOLI2207006

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Data Bulletin

  • End of Life Manual

  • Installation Instruction

  • Technical illustration

  • Technical Drawing

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
MAN-STARTER SHORT CIR CONTACT 575VAC 1 3D CAD
ZIP

MAN-STARTER SHORT CIR CONTACT 575VAC 1 3D CAD

VERSION

1.0

DATE

18 Oct 2022

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
Discover the catalog of Altivar Soft Starter ATS130 range
ZIP

Discover the catalog of Altivar Soft Starter ATS130 range

VERSION

1.0

DATE

12 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 11.4 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 624.7 KB
Motor Control Solutions for the North American Market Data Bulletin
ZIP

Motor Control Solutions for the North American Market Data Bulletin

VERSION

5.0

DATE

10 Mar 2025

REVISION

5.0

DOWNLOAD (ZIP) 75.3 MB
TeSys Deca - auxiliary contact block (GV)
ZIP

TeSys Deca - auxiliary contact block (GV)

VERSION

2.0

DATE

26 Dec 2024

REVISION

2.0

DOWNLOAD (ZIP) 616.7 KB
GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet
ZIP

GV2 ME.. Motor circuit-breakers - IS on the box - Instruction Sheet

VERSION

3.0

DATE

19 Dec 2024

REVISION

3.0

DOWNLOAD (ZIP) 1.3 MB

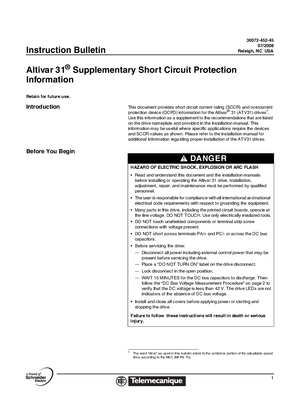

Altivar 31 Supplementary Short Circuit Protection Installation Instructions
ZIP

Altivar 31 Supplementary Short Circuit Protection Installation Instructions

VERSION

1.0

DATE

01 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 69.1 KB
TeSys AUX SHORT CCT C/O LHS - TI
ZIP

TeSys AUX SHORT CCT C/O LHS - TI

VERSION

1.0

DATE

19 Mar 2025

REVISION

1.0

DOWNLOAD (ZIP) 383.6 KB
Contact blocks for circuit breaker Dimensions
ZIP

Contact blocks for circuit breaker Dimensions

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 249.4 KB
Contact blocks for circuit breaker Dimensions
ZIP

Contact blocks for circuit breaker Dimensions

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 469.1 KB
DNV EU-RO-MR TA Certificate_GV2ME_GV2P_GV2L_GV2LE_GV2LM_GV2RT
ZIP

DNV EU-RO-MR TA Certificate_GV2ME_GV2P_GV2L_GV2LE_GV2LM_GV2RT

VERSION

1.0

DATE

26 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 225.5 KB
DNV Type Approval Certificate_GV2ME_GV2P_GV2L_GV2LE_GV2LM_GV2RT
ZIP

DNV Type Approval Certificate_GV2ME_GV2P_GV2L_GV2LE_GV2LM_GV2RT

VERSION

1.0

DATE

26 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 659.8 KB
CCC_GVAN&GZ1AN&GVAD&GVAM_Pisek
ZIP

CCC_GVAN&GZ1AN&GVAD&GVAM_Pisek

VERSION

1.0

DATE

11 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB
UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM
ZIP

UL Certificate_TeSys GV2_GV2ME&GV2RT&GV2P&GV2L&GV2LE&GV2LM

VERSION

1.0

DATE

06 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 379.1 KB

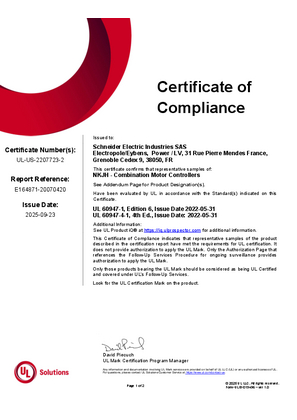

UL Certificate_TeSys GV_GV3P Type E & GV3P combined with LC1D18-65 type F
ZIP

UL Certificate_TeSys GV_GV3P Type E & GV3P combined with LC1D18-65 type F

VERSION

1.0

DATE

29 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 454.4 KB

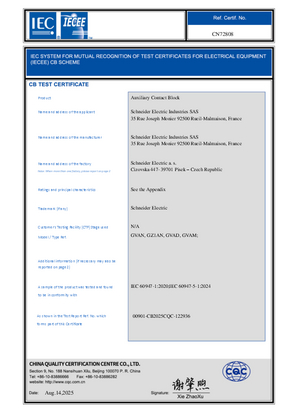

CB Certificate_TeSys GV_GVAN,GZ1AN,GVAD,GVAM_Pisek
