TeSys SK Auxiliary Contact Block 1 NO + 1 NC

Item Number: LA1SK11

1 PCE 0

TeSys SK instantaneous auxiliary contact block, for mini contactors LC1SK, LP1SK and mini control relays CA2SK, CA3SK. It provides 1NO+1NC contacts rated up to 10A/690V AC, connection by screw clamp terminals. Front mounting by clip-on, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA),

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110564006	-

Specifications

Design

Range of product	TeSys SK TeSys SK control relay
Range	TeSys
Product or component type	auxiliary contact block
Product compatibility	LC1SK
Warranty	18 months

Physical

Connections - terminals	screw clamp terminals 1 cable(s) 1.5-6 mm²solid screw clamp terminals 2 cable(s) 1.5-4 mm²solid screw clamp terminals 1 cable(s) 0.5-6 mm²flexible with cable end screw clamp terminals 2 cable(s) 0.35-2.5 mm²flexible with cable end screw clamp terminals 1 cable(s) 0.35-6 mm²flexible without cable end screw clamp terminals 2 cable(s) 0.35-1.5 mm²flexible without cable end
[ue] rated operational voltage	690 V AC <= 400 Hz
Width	27 mm
Net weight	0.022 kg
Standards	CSA C22.2 No 60947-5-1 EN/IEC 60947-5-1 UL 60947-5-1
Product certifications	CB Scheme CE UKCA EAC cULus
Ip degree of protection	IP2X
Ambient air temperature for operation	-20...50 °C
Ambient air temperature for storage	-50...70 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1503003EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Substance regulation data deliverable	Yes
If one of the deliverables is not relevant please give the reason	acc
Life cycle assessment data	No
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Device short name	LA1SK
Auxiliary contacts operation	instantaneous
Pole contact composition	1 NO + 1 NC
Mounting location	front side
[ui] rated insulation voltage	690 V conforming to IEC 60947 690 V conforming to BS 5424 690 V conforming to VDE 0110 group C 690 V conforming to CSA C22.2 No 14
[ith] conventional free air thermal current	10 A (at 55 °C)
Associated fuse rating	10 A gL conforming to IEC 60947 10 A gL conforming to VDE 0660
Tightening torque	0.8 N.m - on screw clamp terminals
Compatibility code	LA1SK
Protective treatment	TC conforming to IEC 60068
Operating altitude	2000 m without derating
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.8 cm
Package 1 width	4.3 cm
Package 1 length	5.5 cm
Package 1 weight	28.0 g
Unit type of package 2	S01
Number of units in package 2	60
Package 2 height	15.0 cm
Package 2 width	15.0 cm
Package 2 length	40.0 cm
Package 2 weight	1.855 kg
Sustainable packaging	Yes
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Scip number	c39a7e5e-6a28-4540-b3bb-b5a727bdce6a
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

TeSys SK Auxiliary Contact Block 1 NO + 1 NC

Item Number: LA1SK11

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Environmental Disclosure

Installation Instruction

Certificates (MSDS)

Declaration of Conformity

Declaration of Conformity (Sustainability)

TeSys k, d, SK (auxiliary contactors) - Instantaneous auxiliary contact blocks TeSys SK - 3D CAD

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

PEP_TeSys LC1K09-K16

TeSys SK - LC1/LP1SK - CA2/CA3SK Mini contactors and auxiliary contactors - Instruction sheet

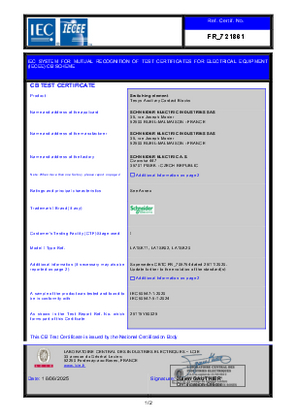

CB Certificate_TeSys SK_LA1SK_Pisek

UL_Certificate_TeSys SK_CA2SK_CA3SK

UL_Certificate_TeSys K_LA1SK&LA4SK

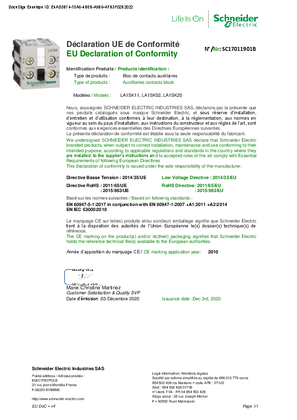

EU_Declaration_SC17011901B_TeSys SK_LA1SK

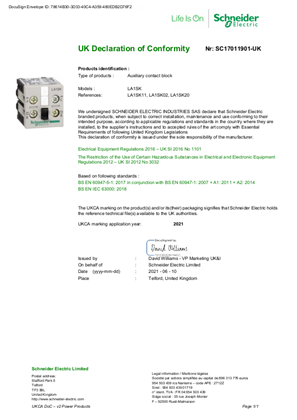

UKCA Declaration TeSys SK_LA1SK
