TeSys LR97D Adapter terminal block TeSys Deca,for separate mounting of LRD01...D35/LR3D02...D35/LR97D

Home ProductsIndustrialTeSysAdapter terminal block

TeSys LR97D Adapter terminal block TeSys Deca,for separate mounting of LRD01...D35/LR3D02...D35/LR97D

Item Number: LAD7B106

TeSys LRD terminal block for mounting of thermal overload relays LRD01-D35, LR3D01-D35 and electronic overcurrent relays LR97D. To be used for a separate mounting between overload relay and contactor. It provides top connections with screw clamp terminals, clip-on fixing on 35 mm DIN-rail or fixing by screws.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width45 mm

Height icon

Height85 mm

Depth icon

Depth80 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

TeSys

Product or component type

terminal block

Product compatibility

  • LRD01...35
  • LR3D01...D35

Warranty

18 months

Physical

Quantity per set

set of 10

Connections - terminals

screw terminals for lug

Height

85 mm

Width

45 mm

Depth

80 mm

Net weight

0.1 kg

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

California proposition 65

WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Accessory

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

25

Package 3 bare product quantity

400

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

LAD

Accessory / separate part category

connection accessory

Compatibility code

LAD

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.800 cm

Package 1 width

9.000 cm

Package 1 length

7.500 cm

Package 1 weight

93.000 g

Unit type of package 2

S02

Number of units in package 2

25

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

2.657 kg

Unit type of package 3

P06

Number of units in package 3

400

Package 3 height

75.000 cm

Package 3 width

60.000 cm

Package 3 length

80.000 cm

Package 3 weight

60.900 kg

Sustainable packaging

Yes

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • Installation Instruction

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
TeSys LR.D - TeSys D thermal overload relays - terminal block - 3D CAD
ZIP

TeSys LR.D - TeSys D thermal overload relays - terminal block - 3D CAD

VERSION

1.0

DATE

10 Aug 2023

REVISION

1.0

DOWNLOAD (ZIP) 594.1 KB
TeSys - Catalog 2025 - Innovative and connected solutions for motor starters
ZIP

TeSys - Catalog 2025 - Innovative and connected solutions for motor starters

VERSION

16.0

DATE

30 Jul 2025

REVISION

16.0

DOWNLOAD (ZIP) 83.4 MB
TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3
ZIP

TeSys Catalogue - 2022 - Chapter B11 - Overload relays TeSys LRK, Deca, Giga, RM1, LT3

VERSION

9.0

DATE

21 Feb 2024

REVISION

9.0

DOWNLOAD (ZIP) 5.6 MB

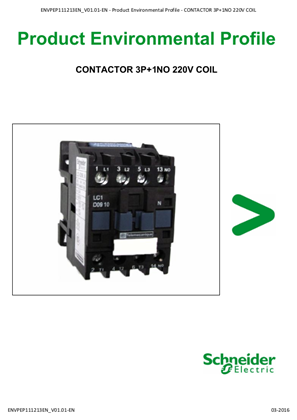

PEP_Contactors, TeSys K, 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil
