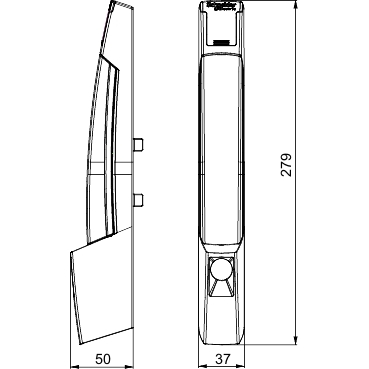

Spacial SM Handle - lock system DIN KABA, ASSA

Item Number: NSYSFHD2

1 PCE 0

PanelSeT SF/SM Cylindrical barrel 1242E keylock for NSYSFHD. Multi-purpose locking accessory. 1 cylindrical barrel and 1 key incl. Set of 1.

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480067631	-

Specifications

Design

Range	PanelSeT
Product or component type	handle
Device application	multi-purpose
Warranty	18 months

Physical

Mounting support	direct mounting on door
Range compatibility	PanelSeT SM PanelSeT SF
Quantity per set	set of 1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1109023EN
Eu rohs directive	Compliant By Exemption

Material

Device composition	1 handle fixing elements
Material	handle: polyamide 6 with 30 % fibre glass label frame: polycarbonate

Others

Life cycle assessment data	Yes
If one of the deliverables is not relevant please give the reason	out of scope
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	600
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	locking accessory
Accessory / separate part type	handle
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	4.000 cm
Package 1 width	6.500 cm
Package 1 length	28.000 cm
Package 1 weight	384.000 g
Unit type of package 2	PAM
Number of units in package 2	600
Package 2 height	50.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	245.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	3 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.677215728
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.074304338
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.085589321
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.907427175
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	Yes
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	2.744536562
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	52da316e-d4e1-4114-85c0-32a03b2934fd
Pvc free	Yes
Silicone-free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
