Specifications
Design
Range
PanelSeT
Product or component type
escutcheon
Device application
multi-purpose
Warranty
18 months
Physical
Mounting support
direct mounting on door
Range compatibility
- PanelSeT PanelSeT SM
- PanelSeT PanelSeT SF
Quantity per set
set of 1
Reach free of svhc
Yes
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP110923EN
Material
Device composition
- 1 shape insert
- 1 flat lock
- fixing elements
- key
Material
polyamide 6 with 30 % fibre glass
Others
Package 1 bare product quantity
1
Accessory / separate part category
locking accessory
Accessory / separate part type

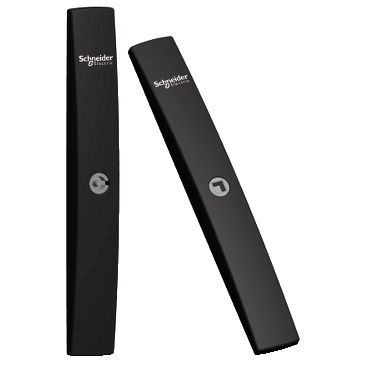

flat escutcheon lock
Lock type

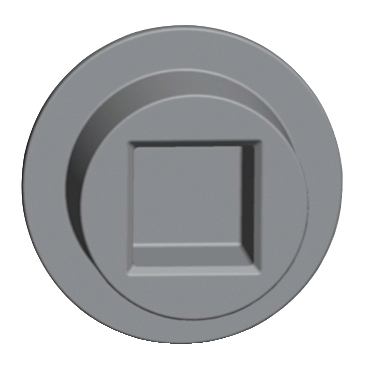

lock 8 mm female square insert
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 cm
Package 1 width
10 cm
Package 1 length
27 cm
Package 1 weight
160 g
Scip number
52da316e-d4e1-4114-85c0-32a03b2934fd
Coverage
Kernproduct
