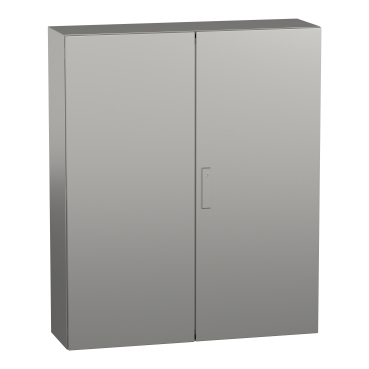

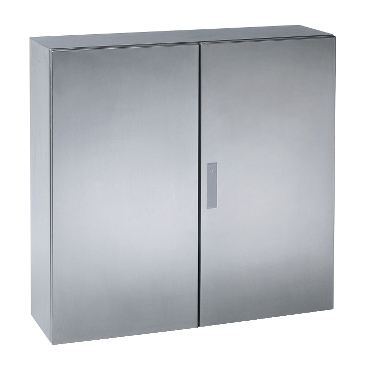

Spacial S3X Wall mounted enclosure stainless steel 316L,double plain door, 1200x1000x300mm, IP55

Item Number: NSYS3X121030H

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480155000	-

Specifications

Design

Range	Spacial
Device application	multi-purpose
Product or component type	compact enclosure
Surface finish	body and door: Scotch-Brite® brushed
Warranty	18 months

Physical

Net weight	51.6 kg
Standards	IEC 62208 UL cUL
Product certifications	UL 508 type A CAN/CSA 22
Ip degree of protection	IP55 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Environmental characteristic	specific hygiene corrosive
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2109018EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 body 2 door 1 lock: door 1 reinforcement frame drilled: door
Material	hinge: stainless steel body and door: stainless steel 316L

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	4
Average percentage of recycled plastic content	0 %
	At least in Europe
Legacy weee scope	Out
Warranty duration(in months) bmecat	18
Weee label	No
Product name	Spacial S3X
Enclosure nominal height	1200 mm
Enclosure nominal width	1000 mm
Enclosure nominal depth	300 mm
Installation accessory type	wall-mounting
Body type	single piece body, cross-shaped structure gutter shaped front rail
Door type	plain
Number of doors	front face: 2 door(s)
Door opening side	reversible (120 °)
Lock type	3 points lock, 3 mm double-bar
Mounting plate description	without mounting plate
Type of gland plate	without gland plate
Accessibility for operation	front
Removable parts	door by hinges
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	32.000 cm
Package 1 width	101.000 cm
Package 1 length	122.000 cm
Package 1 weight	51.600 kg
Unit type of package 2	PAM
Number of units in package 2	4
Package 2 height	140.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	228.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	767 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	526.5936105589063
Carbon footprint of the manufacturing phase [a1 to a3]	527 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	102.44265047445172
Carbon footprint of the distribution phase [a4]	102 kg CO2 eq.
Carbon footprint of the installation phase [a5]	2.561321708756131
Carbon footprint of the installation phase [a5]	3 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	135.451613385554
Carbon footprint of the end-of-life phase [c1 to c4]	135 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	767.0491961276682
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	e893f0a0-d2cc-4011-9425-3873dde70142
China rohs label	1
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Technical Data Catalogues
Environmental Disclosure
Installation Instruction
Technical illustration
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

S3X 1200x1000x300 - 3D CAD

VERSION

1.0

DATE

25 Apr 2025

REVISION

1.0

DOWNLOAD (ZIP) 2.8 MB

ZIP

DXF Drawings for Encl. S3X 316L 1200x1000x300

VERSION

2.0

DATE

15 Feb 2024

REVISION

2.0

DOWNLOAD (ZIP) 186 KB

ZIP

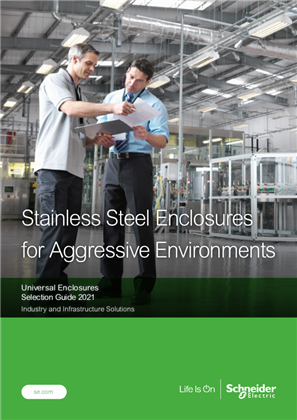

Universal Enclosures - Stainless Steel Enclosures for Aggressive Environments - 2021 Selection Guide

VERSION

2.0

DATE

04 Mar 2024

REVISION

2.0

DOWNLOAD (ZIP) 7.8 MB

ZIP

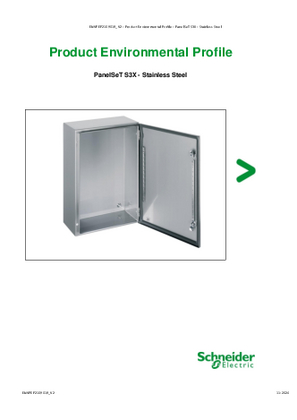

PanelSeT S3X - Stainless Steel

VERSION

1.0

DATE

04 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 380 KB

ZIP

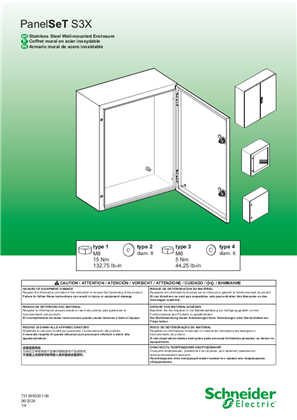

PanelSeT S3X - Stainless Steel Wall-mounted Enclosure - Instruction sheet

VERSION

1.0

DATE

16 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

ZIP

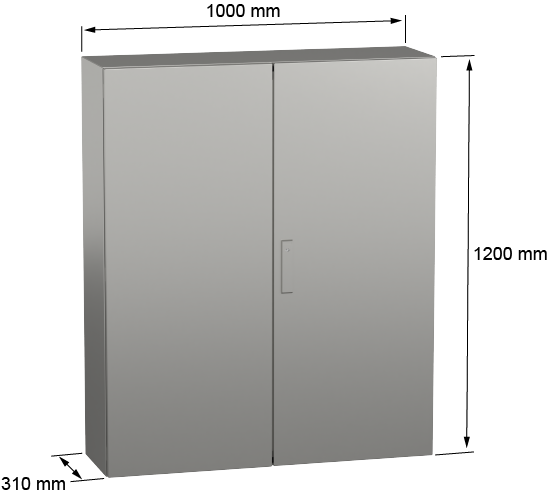

Wall mounted steel enclosure, PanelSeT S3X - NSYS3X121030H - Image with dimensions
