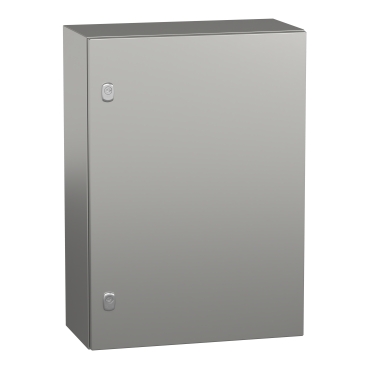

Spacial S3X Wall mounted enclosure stainless steel 316L, plain door, 700x500x250mm, IP66

Item Number: NSYS3X7525H

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480155277	-

Specifications

Design

Range	Spacial
Device application	multi-purpose
Product or component type	compact enclosure
Surface finish	body and door: Scotch-Brite® brushed lock: chromium plated
Warranty	18 months

Physical

Net weight	17.44 kg
Standards	IEC 62208 UL cUL
Product certifications	UL 508 type A CAN/CSA 22
Ip degree of protection	IP66 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Environmental characteristic	corrosive specific hygiene
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2109018EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 body 1 door 2 lock: door 2 perforated vertical profile drilled: door
Material	lock: zamak hinge: stainless steel body and door: stainless steel 316L

Others

Package 2 bare product quantity	21
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
Product name	Spacial S3X
Enclosure nominal height	700 mm
Enclosure nominal width	500 mm
Enclosure nominal depth	250 mm
Installation accessory type	wall-mounting
Body type	single piece body, cross-shaped structure gutter shaped front rail
Door type	plain
Number of doors	front face: 1 door(s)
Door opening side	reversible (120 °)
Lock type	2 points lock, 3 mm double-bar
Mounting plate description	without mounting plate
Type of gland plate	without gland plate
Accessibility for operation	front
Removable parts	door by hinges
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	27.000 cm
Package 1 width	51.000 cm
Package 1 length	71.000 cm
Package 1 weight	17.642 kg
Unit type of package 2	PAM
Number of units in package 2	21
Package 2 height	195.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	383.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	262 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	180.04194723798884
Carbon footprint of the manufacturing phase [a1 to a3]	180 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	35.0250627843077
Carbon footprint of the distribution phase [a4]	35 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.8757139067030166
Carbon footprint of the installation phase [a5]	0.9 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	46.31080161527022
Carbon footprint of the end-of-life phase [c1 to c4]	46 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	262.2535255442698
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	e893f0a0-d2cc-4011-9425-3873dde70142
China rohs label	1
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
