Home ProductsIndustrialSpacial S3XWall mounted enclosure

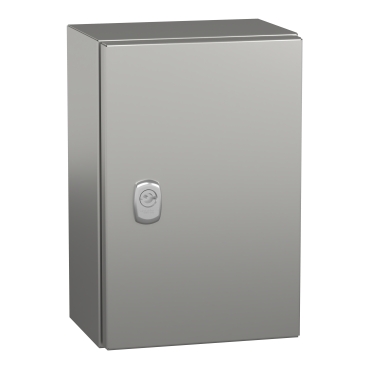

Spacial S3X Wall mounted enclosure stainless steel 316L, plain door, 300x200x150mm, IP66

Item Number: NSYS3X3215H

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480155062	-

Specifications

Design

Range	Spacial
Device application	multi-purpose
Product or component type	compact enclosure
Surface finish	body and door: Scotch-Brite® brushed lock: chromium plated
Warranty	18 months

Physical

Net weight	3.12 kg
Standards	IEC 62208 UL cUL
Product certifications	UL 508 type A CAN/CSA 22
Ip degree of protection	IP66 conforming to IEC 60529
Ik degree of protection	IK10 conforming to IEC 62262
Environmental characteristic	corrosive specific hygiene
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2109018EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 body 1 lock: door 1 door
Material	lock: zamak hinge: stainless steel body and door: stainless steel 316L

Others

Legacy weee scope	Out
	At least in Europe
Package 1 bare product quantity	1
Package 2 bare product quantity	24
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Weee label	No
Product name	Spacial S3X
Enclosure nominal height	300 mm
Enclosure nominal width	200 mm
Enclosure nominal depth	150 mm
Installation accessory type	wall-mounting
Body type	single piece body, cross-shaped structure gutter shaped front rail
Door type	plain
Number of doors	front face: 1 door(s)
Door opening side	reversible (120 °)
Lock type	3 mm double-bar lock
Mounting plate description	without mounting plate
Type of gland plate	without gland plate
Accessibility for operation	front
Removable parts	door by hinges
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	17.000 cm
Package 1 width	21.500 cm
Package 1 length	32.000 cm
Package 1 weight	3.120 kg
Unit type of package 2	PAM
Number of units in package 2	24
Package 2 height	48.000 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	90.300 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	46 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	31.84054389425945
Carbon footprint of the manufacturing phase [a1 to a3]	32 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	6.194206772873825
Carbon footprint of the distribution phase [a4]	6 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.15487061494804513
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	8.190097553545124
Carbon footprint of the end-of-life phase [c1 to c4]	8 kg CO2 eq.
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	46.37971883562644
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	e893f0a0-d2cc-4011-9425-3873dde70142
China rohs label	1
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
