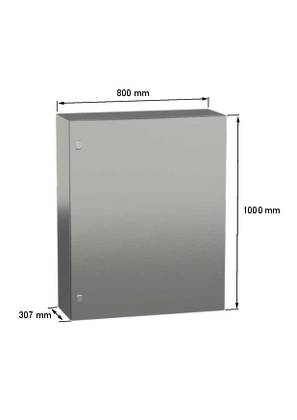

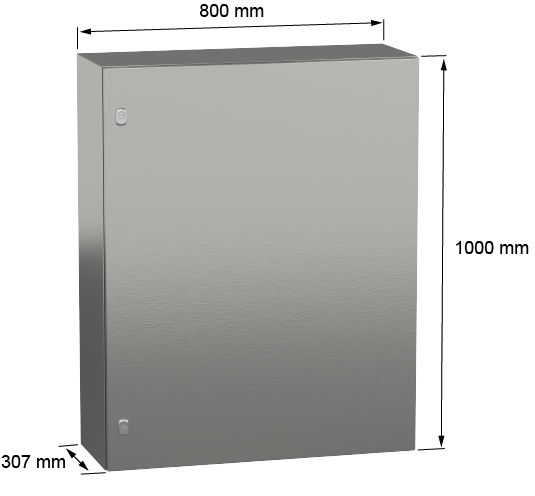

Spacial S3X, Wall mounted enclosure, stainless steel 316L, plain door, 1000x800x300mm, IP66

Home ProductsIndustrialSpacial S3XWall mounted enclosure

Spacial S3X, Wall mounted enclosure, stainless steel 316L, plain door, 1000x800x300mm, IP66

Item Number: NSYS3X10830H

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Spacial

Device application

multi-purpose

Product or component type

compact enclosure

Surface finish

<ul><li>body and door: Scotch-Brite® brushed</li><li>lock: chromium plated</li></ul>

Warranty

18 months

Physical

Net weight

37.6 kg

Standards

IEC 62208

Product certifications

<ul><li>CAN/CSA 22</li><li>UL 508 type A</li></ul>

Ip degree of protection

IP66 conforming to IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Environmental characteristic

<ul><li>specific hygiene</li><li>corrosive</li></ul>

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2109018EN

Circularity profile

N/A

Material

Device composition

<ul><li>1 body</li><li>1 reinforcement frame drilled: door</li><li>1 door</li><li>2 lock: door</li></ul>

Material

<ul><li>lock: zamak</li><li>hinge: stainless steel</li><li>body and door: stainless steel 316L</li></ul>

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

6

Product name

Spacial S3X

Enclosure nominal height

1000 mm

Enclosure nominal width

800 mm

Enclosure nominal depth

300 mm

Installation accessory type

wall-mounting

Body type

<ul><li>single piece body, cross-shaped structure</li><li>gutter shaped front rail</li></ul>

Door type

plain

Number of doors

front face: 1 door(s)

Door opening side

reversible (120 °)

Lock type

2 points lock, 3 mm double-bar

Mounting plate description

without mounting plate

Type of gland plate

without gland plate

Accessibility for operation

front

Removable parts

door by hinges

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

32.500 cm

Package 1 width

81.500 cm

Package 1 length

102.000 cm

Package 1 weight

37.600 kg

Unit type of package 2

PAM

Number of units in package 2

6

Package 2 height

176.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

247.000 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

e893f0a0-d2cc-4011-9425-3873dde70142

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

354.2217392882407
