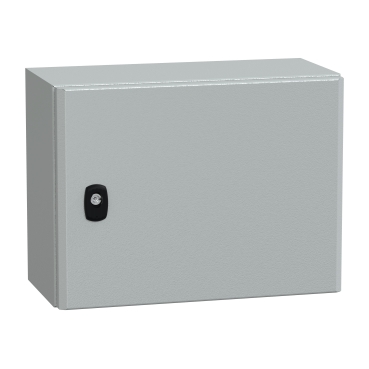

Spacial S3D Wall mounted steel enclosure plain door, with mounting plate, 300x400x200mm, IP66, IK10

Item Number: NSYS3D3420P

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480159657	-

Specifications

Design

Range	PanelSeT
Device application	multi-purpose
Product or component type	compact enclosure
Surface finish	enclosure: epoxy-polyester powder
Colour	enclosure: grey (RAL 7035)
Warranty	18 months

Physical

Standards	IEC 62208 UL cUL
Product certifications	DNV BV UL cUL GL
Net weight	6.8 kg
Ik degree of protection	IK10 conforming to IEC 62262
Ip degree of protection	IP66 conforming to IEC 60529
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1001004EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Cadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Device composition	1 body 1 mounting plate 1 door with lock 1 cable gland plate
Material	enclosure: steel mounting plate: galvanised steel

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	22
Legacy weee scope	Out
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Product name	PanelSeT S3D
Enclosure nominal height	300 mm
Enclosure nominal width	400 mm
Enclosure nominal depth	200 mm
Door type	plain
Mounting plate description	plain
Type of gland plate	standard
Installation accessory type	wall-mounting
Variant particularity	single piece body gutter-shaped front rail double sheet thickness
Number of doors	front face: 1 door(s)
Door opening side	reversible (120 °)
Lock type	3 mm double-bar lock
Accessibility for operation	front
Removable parts	door by hinges cable gland plate by screws mounting plate by fixing element
Nema degree of protection	NEMA 4X/13
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	25.000 cm
Package 1 width	32.000 cm
Package 1 length	41.500 cm
Package 1 weight	6.854 kg
Unit type of package 2	P12
Number of units in package 2	22
Package 2 height	97.000 cm
Package 2 width	80.000 cm
Package 2 length	120.000 cm
Package 2 weight	162.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	65 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	33.46532023756986
Carbon footprint of the manufacturing phase [a1 to a3]	33 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	13.607401673486283
Carbon footprint of the distribution phase [a4]	14 kg CO2 eq.
Carbon footprint of the installation phase [a5]	1.350354825359826
Carbon footprint of the installation phase [a5]	1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	16.147024356179823
Carbon footprint of the end-of-life phase [c1 to c4]	16 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	64.5701010925958
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	e893f0a0-d2cc-4011-9425-3873dde70142
China rohs label	1
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
