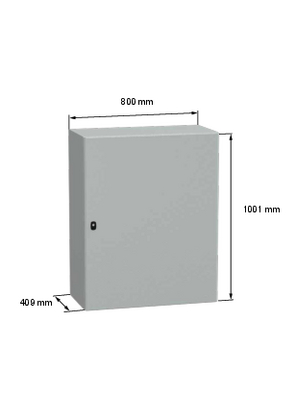

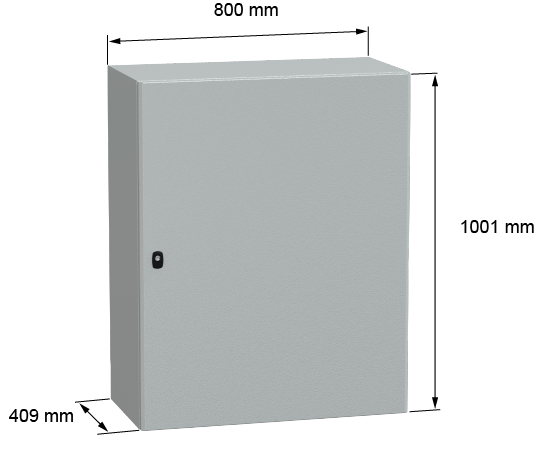

Spacial S3D Wall mounted steel enclosure plain door, with mounting plate, 1000x800x400mm, IP66, IK10

Home ProductsIndustrialSpacial S3DWall mounted steel enclosure

Spacial S3D Wall mounted steel enclosure plain door, with mounting plate, 1000x800x400mm, IP66, IK10

Item Number: NSYS3D10840P

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range PanelSeT
Product or component type compact enclosure
Device application multi-purpose
Colour enclosure: grey (RAL 7035)

Physical

Net weight 57 kg
Standards IEC 62208
Ik degree of protection IK10 conforming to IEC 62262
Reach free of svhc Yes
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP1001004EN
Eu rohs directive Compliant

Material

Device composition
  • 1 body
  • 2 cable gland plate
  • 1 mounting plate
  • 1 door with lock
Material
  • enclosure: steel
  • mounting plate: galvanised steel

Others

Legacy weee scope Out
Package 1 bare product quantity 1
Package 2 bare product quantity 4
Average percentage of recycled plastic content 0 %
At least in Europe
Weee label No
Product name PanelSeT S3D
Number of doors front face: 1 door(s)
Door opening side reversible (120 °)
Accessibility for operation front
Mounting plate description plain
Type of gland plate standard
Nema degree of protection NEMA 4X/13
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 45.500 cm
Package 1 width 82.500 cm
Package 1 length 102.500 cm
Package 1 weight 55.200 kg
Unit type of package 2 PAM
Number of units in package 2 4
Package 2 height 179.000 cm
Package 2 width 100.000 cm
Package 2 length 120.000 cm
Package 2 weight 238.300 kg
Green premium status for reporting Green Premium product
Total lifecycle carbon footprint 520 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 269.51935761801235
Carbon footprint of the manufacturing phase [a1 to a3] 270 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 109.58981213546001
Carbon footprint of the distribution phase [a4] 110 kg CO2 eq.
Carbon footprint of the installation phase [a5] 10.87534087538115
Carbon footprint of the installation phase [a5] 11 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 0
Carbon footprint of the use phase [b2, b3, b4, b6] 0 kg CO2 eq.
Sustainable packaging No
Carbon footprint of the end-of-life phase [c1 to c4] 130.04314917728718
Carbon footprint of the end-of-life phase [c1 to c4] 130 kg CO2 eq.
Pvc free Yes
Silicone-free  Yes
Energy efficiency optimized False
F-gas free N/A
Updatability N/A
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 520.0276598061407
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard No
Packaging without single use plastic No
Scip number e893f0a0-d2cc-4011-9425-3873dde70142
Pvc free Yes
Silicone-free Yes
End of life manual availability N/A
Take-back No
Warranty (in months) 18
