Spacial CRN One asymmetric mounting rail 32x15 L 2000mm, Order by Multiples of 10 units

Item Number: NSYADR200

1 PCE 0

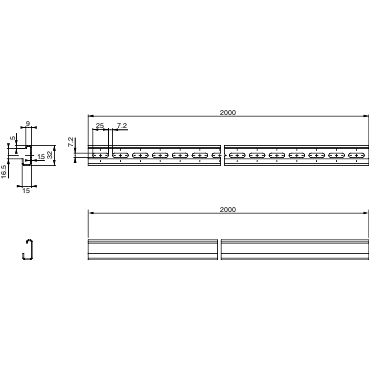

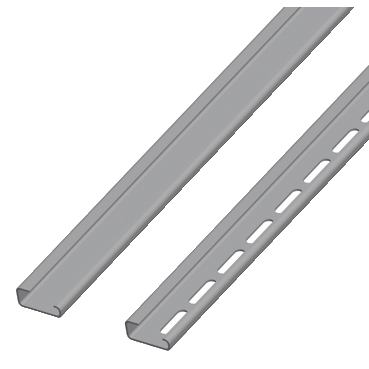

Set of 10 asymmetrical DIN rail rails for equipment The rail is made from not perforated 1,5mm galvanised steel The nominal width is 32mm The nominal height is 15mm The product length is 2000mm Fixed with a pitch of 25mm

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480180194	-
10	CV	13606480180191	-

Specifications

Design

Device application	multi-purpose
Range	PanelSeT
Product or component type	rail
Surface finish	not perforated
Warranty	18 months

Physical

Range compatibility	PanelSeT
Quantity per set	set of 10
Fixing mode	by fixing element - structure of enclosure location
Length	2000 mm
Height	nominal: 15 mm
Width	nominal: 32 mm
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1001004EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Device composition	1 rail
Material	galvanised steel

Others

Life cycle assessment data	No
If one of the deliverables is not relevant please give the reason	Accessory
Legacy weee scope	Out
Package 1 bare product quantity	1
Package 2 bare product quantity	400
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	No
Accessory / separate part category	mounting accessory
Type of rail	asymmetrical DIN rail
Enclosure nominal dimensions	-
Adjustment	continuous adjustment pitch 25 mm
Thickness	1.5 mm
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.000 cm
Package 1 width	8.000 cm
Package 1 length	20.050 cm
Package 1 weight	1.470 kg
Unit type of package 2	PAL
Number of units in package 2	400
Package 2 height	32.000 cm
Package 2 width	120.000 cm
Package 2 length	200.500 cm
Package 2 weight	605.000 kg
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Pvc free	Yes
Silicone-free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
CAD Files and Packs
Environmental Disclosure
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
